Product Details:
|
| Product Name: | CZT Probe | Material: | CdZnTe |
|---|---|---|---|
| Density: | 5.8g/cm3 | Dimension: | 5.0(±0.1) × 5.0(±0.1) Mm2 / 10.0(±0.1) ×1 0.0(±0.1) Mm2 |
| Thickness: | 2.0(±0.1)mm | Electrode Material: | Au |
| Energy Range: | 0℃~+40℃(Standard); -20℃~+40℃(Customized) Energy Range 10KeV~150KeV For Spectrum Measurement 30KeV~1.5MeV For Dosage Measurement | Energy Resolution(22℃): | <7%@59.5KeV |
| Storage (transportation) Temperature: | 10℃~40℃ | Storage (transportation) Humidity: | 20%~80%(non-condensing) |
| High Light: | CZT Semiconductor Wafer,CdZnTe CZT Probe,Homeland Security Semiconductor Wafer |
||
Room temperature working homeland security CZT planar Semiconductor Detector
Cadmium zinc telluride CZT (sometimes written as CdZnTe) is a room temperature semiconductor that directly converts x-ray or gamma photons into electrons and holes.
It is a unique semiconductor compared with silicon and germanium detectors, in that cadmium zinc telluride CZT operates at room temperature and can process >100 million photons/second/mm^2. Additionally, CZT’s spectroscopic resolution clearly outperforms any commercially available scintillator. The unique combination of spectroscopy and very high count rate capability at room temperature makes CZT an ideal detector solution for Medical, Industrial, Homeland Security and Laboratory applications.
Properties:
| Material | CdZnTe |
| Density | 5.8g/cm3 |
| Volume Resistivity | >1010Ω.cm |
| Dimension | 5.0(±0.1) × 5.0(±0.1) mm2 / 10.0(±0.1) ×1 0.0(±0.1) mm2 |
| Thickness | 2.0(±0.1)mm |
| Electrode Material | Au |
| Operating Temperature | 0℃~+40℃(Standard); -20℃~+40℃(Customized) |
| Energy Range |
10KeV~150KeV for spectrum measurement 30KeV~1.5MeV for dosage measurement |
| Energy Resolution(22℃) | <7%@59.5KeV |
| Storage (transportation) Temperature | 10℃~40℃ |
| Storage (transportation) Humidity | 20%~80%(non-condensing) |
| Remarks | Tailor-made is available |
Advantage:
Room temperature working
High energy resolution
Quick response
Long-time stability
Applications:
Homeland security
Space radiation detection
Nuclear science and technology
Environment monitoring
Industrial NDT
Spectrum:

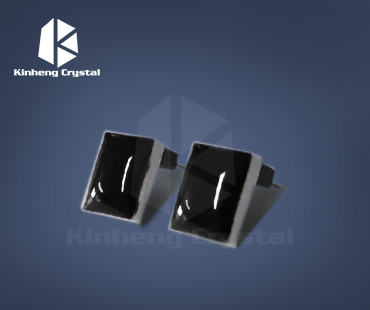

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
