Product Details:
|
| Product Name: | CZT Probe | Material: | CdZnTe |
|---|---|---|---|
| Density: | 5.8g/cm3 | Dimension: | 5.0(±0.1) × 5.0(±0.1) Mm2 / 10.0(±0.1) ×1 0.0(±0.1) Mm2 |
| Thickness: | 2.0(±0.1)mm | Electrode Material: | Au |
| Energy Range: | 0℃~+40℃(Standard); -20℃~+40℃(Customized) Energy Range 10KeV~150KeV For Spectrum Measurement 30KeV~1.5MeV For Dosage Measurement | Energy Resolution(22℃): | <7%@59.5KeV |
| Highlight: | 5.8g/cm3 semiconductor detector,Kinheng CZT Planar,ISO semiconductor detector |
||
Industrial NDT space radiation detection CZT planar Semiconductor Detector
DT-P01 detector is a planar detector based on cadmium zinc telluride (CZT) crystal. It has X-ray and low-energy gamma-ray detection functions and a high energy resolution. It is used in the fields of homeland security, nuclear science and technology, etc. . It can be designed in a variety of sizes, shapes and specifications according to the user's requirements.
Properties:
| Material | CdZnTe |
| Density | 5.8g/cm3 |
| Volume Resistivity | >1010Ω.cm |
Dimension |
5.0(±0.1) × 5.0(±0.1) mm2 / 10.0(±0.1) ×1 0.0(±0.1) mm2 |
| Thickness | 2.0(±0.1)mm |
| Electrode Material | Au |
| Operating Temperature | 0℃~+40℃(Standard); -20℃~+40℃(Customized) |
| Energy Range |
10KeV~150KeV for spectrum measurement 30KeV~1.5MeV for dosage measurement |
| Energy Resolution(22℃) | <7%@59.5KeV |
| Storage (transportation) Temperature | 10℃~40℃ |
| Storage (transportation) Humidity | 20%~80%(non-condensing) |
| Remarks | Tailor-made is available. |
Advantage:
Room temperature working
High energy resolution
Quick response
Long-time stability
Applications:
Homeland security
Space radiation detection
Nuclear science and technology
Environment monitoring
Industrial NDT
Spectrum:

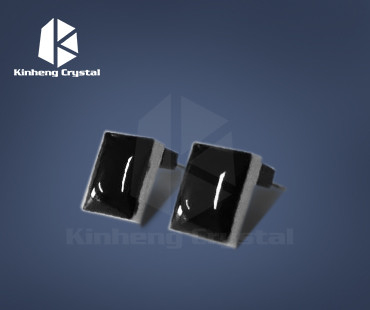

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
