CZT α-ray Semiconductor Detector Quick Response High Energy Resolution

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

CZT α-ray Semiconductor Detector Quick Response High Energy Resolution

CZT α-ray Semiconductor Detector Quick Response High Energy Resolution
CZT α-ray Semiconductor Detector Quick Response High Energy Resolution

Large Image :  CZT α-ray Semiconductor Detector Quick Response High Energy Resolution

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

CZT α-ray Semiconductor Detector Quick Response High Energy Resolution

Description
Product Name: CZT α-ray Semiconductor Detector Material: CdZnTe
Density: 5.8g/ Cm3 Effective Area: Φ25mm
Energy Resolution: <1%@5.48MeV, 25℃ (vaccum) Advantage: Quick Response, High Energy Resolution
Applications: Nuclear Science & Technology,aerosol Measurement, Hydrogen Measurement Remarks: Customized Available
High Light:

α-ray Semiconductor Detector

,

α energy spectrum detectors

,

Semiconductor Detector Quick Response

Quick response high energy resolution CZT α-ray Semiconductor Detector



The α energy spectrum series detectors are charged particle detectors with ultra-small dimensions based on cadmium zinc telluride (CZT) crystals. Both environmental and vacuum levels can be used, and the energy resolution to alpha rays is extremely high in a vacuum environment.



The charged particle detector consists of a high-resolution CZT crystal, a high-quality visible light shielding window and a metal encapsulation shell. It can work under visible light irradiation, and the window material can meet the needs of multiple cleaning and wiping. Good quality and with high price-performance ratio.


Properties:



Material CdZnTe
Density 5.8g/ cm3
Volume Resistance >1010Ω.cm
Effective Area Φ25mm
Operation Temperature 0℃~+40℃(standard) / -20℃~+40℃ (Special)
Energy Resolution <1%@5.48MeV, 25℃ (vaccum)
Storage(transportation) Temperature -20℃~+40℃
Storage(transportation) Humidity 20%~80%(non-condensing)
Remarks Customized available



Advantage:

High energy resolution

Room temperature working

Quick response

Visible light workable



Applications:

Nuclear science & technology
Aerosol measurement
Hydrogen measurement



Spectrum Sample:


CZT α-ray Semiconductor Detector Quick Response High Energy Resolution 0





Product shots:

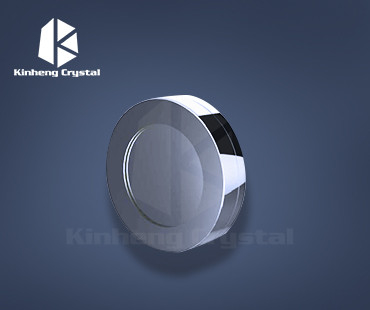

CZT α-ray Semiconductor Detector Quick Response High Energy Resolution 1



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
