Product Details:
|
| Name: | CZT Counting Module，CZT Semiconductor Detector | Material: | CdZnTe,CZT |
|---|---|---|---|
| Dimension: | 37x18x5mm3 | Weight: | 5.7g |
| Energy Range: | 5.7g Energy Range 50keV~1.5MeV | Measurement Accuracy: | < ±10%@137Cs |
| Dose Rate Range: | 0.1μSv/h~1.5mSv/h | Output Impedence: | 50Ω |
| High Light: | CZT radiation dosage meter,radiation dosage meter CdZnTe,CdZnTe cadmium zinc telluride radiation detector |
||
CZT counting module radiation dosage meter CdZnTe Semiconductor Detector
The SPC1002 / SPC0502 are single-channel counting modules based on CZT detectors; the product internally consists of 10x10x2mm³ or 5x5x2mm³ optional detectors, high-gain charge sensitive amplifiers and SK forming circuits. With small appearance and strong stability, it can be used as the core module of measuring instruments.
Properties:
| Dimension | 37x18x5mm3 |
| Weight | 5.7g |
| Energy Range | 50keV~1.5MeV |
| Measurement Accuracy | < ±10%@137Cs |
| Dose Rate Range | 0.1μSv/h~1.5mSv/h |
| Output Impedence | 50Ω |
| Operating Temperature | -20℃~+40℃ |
| Power | <0.01W |
| Time to Peak | 440ns |
| Falling Edge Time | 1.7μs |
| Low Voltage | +5V |
| High Voltage | 20~100V |
Advantage:
Small and stable
Applications:
1.X-ray detection
2.Probe for radiation dosage meter
3.Portable counting instruments
Operating Principle:
Pin Definition:

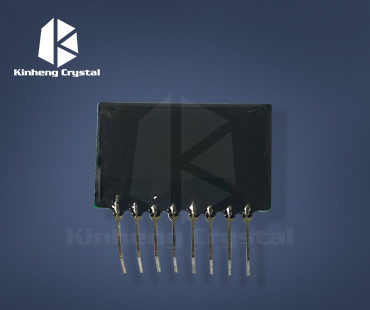

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
