Product Details:
|
| Integral Time: | 2ms～20ms | Signal To Noise Ratio (Integral Capacitance:3pF): | 30000:1 |
|---|---|---|---|
| Transmission Speed: | 100MB/s | Output Data: | 16bit |
| Input Range: | 10pA-4000pA | Application: | Security Screening,material Sort,bone Densitometry |
| Strength: | Compact Mechanical Size | Pixel Pitch(low-energy): | P1.575mm |
| Pixel Pitch(high-energy): | P0.8mm, P1.575mm, P2.5mm,P5.2mm | Number Of Scintialltors: | Single-energy：4pcs；Dual-energy:8pcs |
| High Light: | Dual Energy x ray machine components,Kinheng x ray machine components,x ray card Security Screening |
||
Security screening,material sort,bone densitometry Dual X ray Detector Components
The X-Card DE (Dual Energy) is a family of dual-energy X-ray detector modules assembled on a driver board to facilitate interfacing with a data acquisition system. Dual energy X-ray detection enables material discrimination for applications including security screening, material sorting, and bone densitometry. Detector modules may be used individually or daisy-chained to create longer arrays.
Properties:
| Index | Parameter |
| Integral Time | 2ms～20ms |
| Signal to Noise Ratio (Integral capacitance:3pF) | 30000:1 |
| Transmission Speed | 100MB/s |
| Output Data | 16bit |
| Detector Pixel | 1.575mm |
| Input Range | 10pA-4000pA |
| Max PD Channels | 2560 |
| Work Temperature | -10℃～40℃ |
| Storage Temperature | -30℃～60℃ |
Application:
Security Inspection
NDT
Food Inspection
Bone Density Inspection

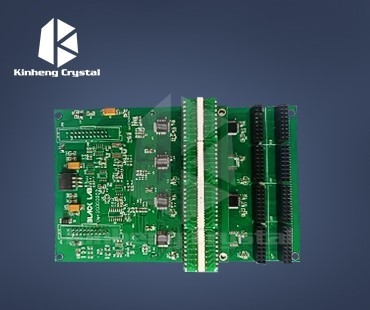

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
