Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards

Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards
Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards
Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards

Large Image :  Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards

Description
Integral Time: 2ms~20ms Signal To Noise Ratio (Integral Capacitance:3pF): 30000:1
Transmission Speed: 100MB/s Output Data: 16bit
Input Range: 10pA-4000pA Single-energy Scintillator: CsI(Tl),GOS
Dual-energy Scintillator: CsI(Tl)+CsI(Tl),CsI(Tl)+GOS Application: Bone Density Inspection
High Light:

Linear Array X ray Detector Components

,

Linear Array X-Ray Detector Cards

,

100MB/s X ray Detector Components

Single or dual energy linear array x-ray detector cards X ray Detector Components



The digital X-Card is a Dual-energy or Single-energy linear array X-ray detector card.Dual -energy digital X-card has two-layers of silicon photodiode arrays with different scintillator materials and copper filter in between in order to seperate high-energy and low-energy X-ray ranges.

Kinheng can provide Dual AD card with both high and low energy detector module integrated in PCB.



Properties:



Index Parameter
Integral Time 2ms~20ms
Signal to Noise Ratio (Integral capacitance:3pF) 30000:1
Transmission Speed 100MB/s
Output Data 16bit
Detector Pixel 1.575mm
Input Range 10pA-4000pA
Max PD Channels 2560
Work Temperature -10℃~40℃
Storage Temperature -30℃~60℃



Application:

Security Inspection

NDT

Food Inspection

Bone Density Inspection

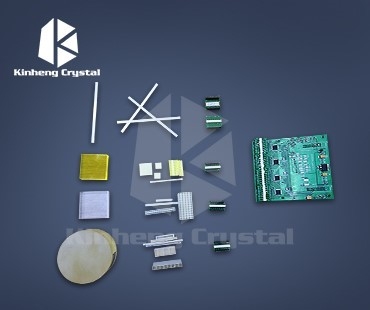

Product shots:

Single Or Dual Energy Linear Array X Ray Detector Components X-Ray Detector Cards 0





FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
