Product Details:
|
| Density(g/cm3): | 2.64 | Melting Point(℃): | 845 |
|---|---|---|---|
| Thermal Conductivity: | 11.3 Wm-1K-1 At 314K | Thermal Expansion: | 37 X 10-6 /℃ |
| Hardness (Mho): | 113 With 600g Indenter (kg/mm2) | Specific Heat Capacity: | 1562 J/(kg.k) |
| Dielectric Constant: | 9.0 At 100 Hz | Elastic Coefficient: | C11=112; C12=45.6; C44=63.2 |
| High Light: | LiF Crystal Substrate,LiF2 optical crystal,LiF Crystal Substrate ISO |
||
Excellent IR performance for windows and lens LiF single crystal substrate
LiF2 optical crystal has excellent IR performance for windows and lens.Lithium fluoride crystals belong to the cubic system, and the cleavage plane is the (100) plane, which has excellent optical properties, especially in the deep ultraviolet range.
Properties:
| Density(g/cm3) | 2.64 |
| Melting Point(℃) |
845 |
| Thermal Conductivity | 11.3 Wm-1K-1 at 314K |
| Thermal Expansion | 37 x 10-6 /℃ |
| Knoop Hardness | 113 with 600g indenter (kg/mm2) |
| Specific Heat Capacity | 1562 J/(kg.k) |
| Dielectric Constant | 9.0 at 100 Hz |
| Youngs Modulus (E) | 64.79 GPa |
| Shear Modulus (G) | 55.14 GPa |
| Bulk Modulus (K) | 62.03 GPa |
| Rupture Modulus | 10.8 MPa |
| Elastic Coefficient | C11=112; C12=45.6; C44=63.2 |
Advantage:
1.Excellent IR performance

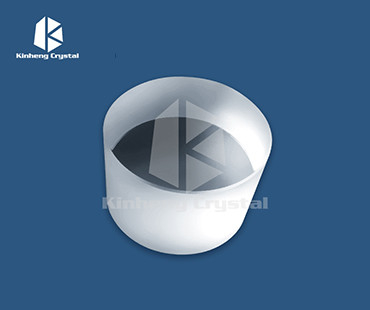

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
