MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal

MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal
MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal

Large Image :  MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal

Description
Crystal Structure: Cubic Crystal Orientation: <100>, <110>, <111>
Size: Dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm Polishing: Single-sided Polished Or Double-sided Polished
Phase Velocity: 6500 M/s At (100> Shear Wave Product Name: MgAl2O4 Single Crystal Substrate
Full Name: Magnesium Aluminate (spinel) Single Crystal Substrate Chemical Formula: MgAl2O4
Growth Method: Czochralski
High Light:

MgAl2O4 Single Crystal Substrate

,

Magnesium Aluminate spinel crystal

,

Cubic Single Crystal Substrate

Magnesium aluminate (spinel) crystal MgAl2O4 single crystal substrate



MgAl2O4 magnesium aluminate (spinel) single crystals are widely used in ultrasonic and microwave material and device related epitaxial growth.



Properties:



Crystal Structure Cubic
Lattice Constant a = 8.085Å
Melting Point(℃) 2130
Density(g/cm3) 3.64
Hardness (Mho) 8
Color White transparent
Propagation Loss (9GHz) 6.5db/us
Crystal Orientation <100>, <110>, <111> Tolerance: + / -0.5 degrees
Size dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm
Polishing Single-sided polished or double-sided polished
Thermal Expansion Coefficient 7.45 × 10 (-6) / ℃



Advantage:

1.Microwave devices



Product shots:

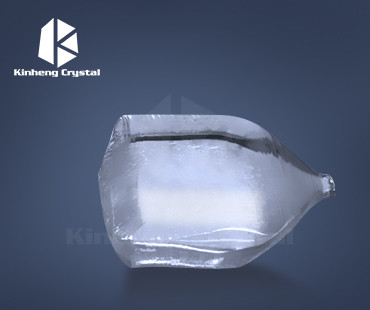

MgAl2O4 Single Crystal Substrate Magnesium Aluminate Spinel Crystal 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
