Product Details:
|
| Anti-Temperature: | 70°C | Optic Window: | Quartz Window |
|---|---|---|---|
| Material: | NaI(Tl) Scintillation Crystal | Shape: | Cylinder |
| Housing: | Stainless Steel Housing | Dimension: | 3x8 Inch Or Customized |
Radioactive level gauge NaI(Tl) scintillation crystal
In radiometric density measurement, an isotope emits focussed gamma rays. The detector on the opposite side of the pipeline receives the radiation.
The NaI(Tl) scintillation crystal of the detector converts the gamma radiation into signals, whose number is detected and evaluated. Because gamma rays are attenuated when penetrating matter, the detector can calculate the density or concentration on the basis of the change in intensity.
Properties:
| Density(g/cm3) | 3.67 |
| Melting Point (K) | 924 |
| Thermal expansion coefficient (K-1) | 47.4 x 10-6 |
| Cleavage Plane | (100) |
| Hardness (Mho) | 2 |
| Hygroscopic | Yes |
| Wavelength of Emission Maximum (nm) | 415 |
| Refractive Index at Emission Maximum | 1.85 |
| Primary Decay Time(ns) | 250 |
| Light Yield (photons/keV) | 38 |
Advantage:
1.Good performance for shocking/virbration
2.Anti-high temperature
3.Forged crystal with good mechanic strength
4.Diameter 15mm -Dia4" available
Application:
MWD
Oil/Welllogging
Gamma probe

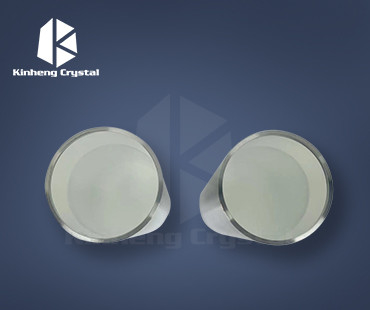

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
