Product Details:
|
Reflector: | MgO | Encapsulation: | Aluminum Housing |
---|---|---|---|
Material: | NaI(Tl) Scintillator Crystal | Crystal Size: | 1 Inch;2inch |
SIPM: | 6x6mm | SIPM Numbers: | 1~4 |
Storage Temperature: | -20 ~ 70℃ | Operation Temperature: | -10~ 40℃ |
High Light: | Scintillator SiPM Detector,Aluminum Housing Scintillator Detector,NaI(Tl) SiPM Detector |
NaI(Tl) Scintillator SiPM Detector
The design and operation of scintillation detectors are shifting to Silicon Photomultiplier (SiPM) detectors from the traditional Photomultiplier Tube (PMT) due to the inherent advantages of compactness (average height reduction for a detector about 4”), ruggedness, low voltage (run at 5V in, and use less than 150mW) and magnetic field insensitivity.
SiPMs require much less power than PMTs, typically by a factor of 20x – 30x lower operating voltage. SiPMs have a higher photon detection efficiency than PMTs for scintillation light. This creates larger signals with less stochastic and Poisson noise. PMTs are greatly affected by magnetic fields whereas SiPMs are insensitive to magnetic fields. The SiPM is a highly attractive alternative, providing all the benefits of a solid-state sensor while still achieving the low-light detection capabilities of the PMT.
Properties:
Model |
S-1 | S-2 |
Crystal size | 1” | 2” |
SIPM | 6x6mm | 6x6mm |
SIPM Numbers | 1~4 | 1~16 |
Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ |
Operation temperature | -10~ 40℃ | -10~ 40℃ |
HV | 26~+31V | 26~+31V |
Scintillator | NaI(Tl) | NaI(Tl) |
Humidity | ≤70% | ≤70% |
Signal Amplitude | -50mv | -50mv |
Energy resolution | <7.5% | <7.5% |
S1 Dimension S1 Connector
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification

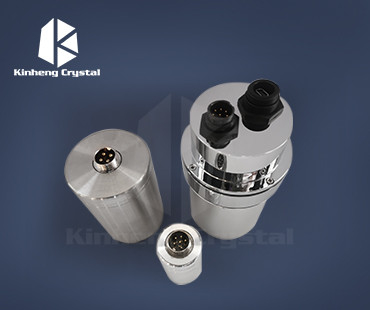

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
