Product Details:
|
| Material: | Thallium Activated Cesium Iodide Or CsI(Tl) Crystal | Readout: | Photodiode Readout Or PD |
|---|---|---|---|
| Application: | Security X-ray Scanning Machine,Industrial Inspection | Max Reverse Voltage: | 10V |
| Operation Temperature: | -10 -- +60℃ | Storage Temperature: | -20 -- +70℃ |
| Afterglow (after 30ms) [%: | 3 | Reflector Thickness: | Customized |
| High Light: | Scintillator Detector Photodiode Readout,PD csi scintillation detector,X-Ray Scanning Scintillator Detector |
||
CsI(Tl) Scintillator Detector Security X-Ray Scanning
Thallium activated Cesium Iodide or CsI(Tl) crystals is one of the brightest scintillator. The maximum of the broad emission situated at 550nm is is well suited for photodiode readout. It has excellent mechanical properties, with a light yield four-times higher than that of BGO and a radiation length shorter than that of NaI(Tl). CsI(Tl) is slightly hygroscopic with plastic mechanical properties. Combined with the relatively good radiation hardness properties, CsI(Tl) is well suited for High Energy Physics. CsI(Tl) arrays are widely used in the medical and security X-Ray scanning.
Kinheng offers the CsI(Tl) blanks, polished crystals, encapsulated scintillators and CsI(Tl) arrays, CsI(Tl) array +PD assemblies, 2-dimension arrays upon customer's request, our CsI scintillation crystals and CsI arrays are widely used in the nuclear radiation detection, high energy physics, security X-ray scanning machine, Industrial inspection and medical equipment of Computerized Tomography (CT) Scanning.
1. Different materials’ performance parameters:
| Scintillator material | CsI(Tl) | CdWO4 | GAGG:Ce | GOS:Pr/Tb Ceramic | GOS:Tb Film |
| Light yield | 54000 | 12000 | 50000 | 27000/45000 | 145% of DRZ High |
| Afterglow(after 30ms) | 0.6-0.8% | 0.1% | 0.1-0.2% | 0.01%/0.03% | 0.008% |
| Decay Time(ns) | 1000 | 14000 | 48, 90, 150 | 3000 | 3000 |
| Hygroscopic | Slightly | None | None | None | None |
| Energy range | Low energy | High energy | High energy | High energy | Low energy |
| Overall costs | Low | High | Middle | High | Low |
2．PD performance parameters
| Index | Symbol | Value | Unit |
| Max Reverse Voltage | Vrmax | 10 | v |
| Operation temperature | Top | -10 -- +60 | °C |
| Storage temperature | Tst | -20 -- +70 | °C |
| Parameter | Symbol | Term | Typical value | Max | Unit |
| Spectral response ranges | λp | 350-1000 | - | nm | |
| Peak response wavelength | λ | 800 | - | nm | |
| Photosensitivity | S | λ=550 | 0.44 | - | A/W |
| λp=800 | 0.64 | ||||
| Dark current | Id | Vr=10mV | 3 - 5 | 10 | pA |
| Pixel capacitance | Ct | Vr=0,f=10kHz | 40 - 50 | 70 | pF |
3．PD Detector Drawing
(P1.6mm CsI(Tl)/ GOS:Tb Detector)
(P2.5mm GAGG/ CsI(Tl)/CdWO4 Detector)

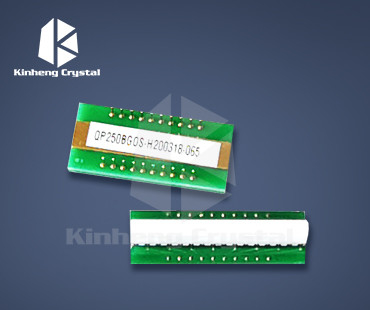

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
