Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector

Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector
Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector

Large Image :  Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector

Description
Encapsulation: Al Housing,SS Housing Scintillator Available: NaI(Tl)
Crystal Size: 1",2",3",50x100x400mm,100x100x400mm Hamamatsu PMT: CR125,CR119
Storage Temperature: -20 ~ 70℃ Operation Temperature: 0~ 40℃
Warranty: One Year Energy Resolution 1: 6% ~ 8%(1”,2“,3”)
Application: Radiation Dose Measurement; Energy Measurement
High Light:

Energy Measurement NaI Scintillation Detector

,

NaI Sodium Iodide Scintillation Detector

,

NaI Scintillation Counter

Excellent energy resolution Sodium iodide NaI(Tl) Scintillator Detector



A NaI(Tl) scintillation counter is a radiation detector that uses the effect known as scintillation. Scintillation, which occurs in the NaI(Tl) crystal, is a flash of light produced in a transparent material by the passage of a particle (an electron, an alpha particle, an ion, or a high-energy photon). Scintillation occurs in the scintillator, a key part of a scintillation detector. In general, a scintillation detector consists of:
Scintillator. A scintillator generates photons in response to incident radiation.
Photodetector. A sensitive photodetector,usually a photomultiplier tube (PMT),converts the light to an electrical signal, and electronics process this signal.
The basic principle of operation involves the radiation reacting with a scintillator, which produces a series of flashes of varying intensity. The intensity of the flashes is proportional to the energy of the radiation, and this feature is very important. These counters are suited to measure the energy of gamma radiation (gamma spectroscopy) and, therefore, can be used to identify gamma-emitting isotopes.


Properties:



Model

Properties

SD-1 SD-2 SD-2L SD-4L
Crystal size 1” 2"&3" 50x100x400mm 100x100x400mm
PMT CR125 CR119 CR119 CR119
Storage Temperature -20 ~ 70℃ -20 ~ 70℃ -20 ~ 70℃ -20 ~ 70℃
Operation temperature 0~ 40℃ 0~ 40℃ 0~ 40℃ 0~ 40℃
HV 0~+1500V 0~+1500V 0~+1500V 0~+1500V
Scintillator

NaI(Tl)

NaI(Tl) NaI(Tl) NaI(Tl)
Operation Humidity ≤70% ≤70% ≤70% ≤70%
Energy resolution 6% ~ 8% 6% ~ 8% 7% ~ 8.5% 7% ~ 8.5%



 Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector 0



                                                                          2" probe dimension



Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector 1

                                                                               Pin Definition



Application:

Radiation dose measurement

Energy measurement

Spectrum analysis

Nuclide identification

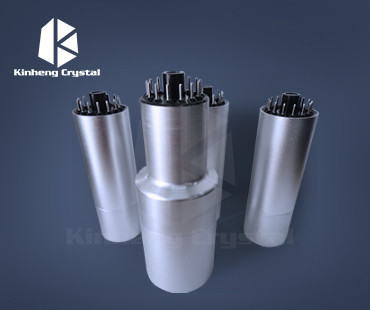

Product shots:



Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector 2

Excellent Energy Resolution Sodium Iodide NaI(Tl) Scintillator Detector 3





FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
