Product Details:
|
| Reflector: | MgO | Housing: | Aluminum |
|---|---|---|---|
| Scintillator: | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 | Crystal Size: | 2 Inch |
| HV: | 26~+31V | Humidity: | ≤70% |
| Signal Amplitude: | -50mv | Energy Resolution: | ＜7.5% |
| High Light: | GAGG SiPM Scintillator Detector,2 Inch GAGG Scintillator Detector,SiPM Scintillation Counter |
||

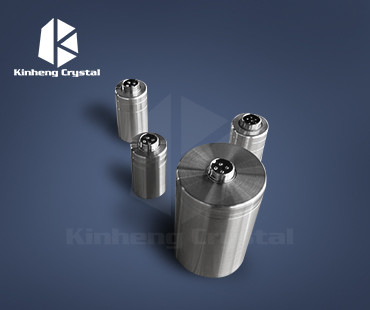

GAGG SiPM Scintillator detector
The design and operation of scintillation detectors are shifting to Silicon Photomultiplier (SiPM) detectors from the traditional Photomultiplier Tube (PMT) due to the inherent advantages of compactness (average height reduction for a detector about 4”), ruggedness, low voltage (run at 5V in, and use less than 150mW) and magnetic field insensitivity.
Properties:
|
Model |
S-1 | S-2 |
| Crystal size | 1” | 2” |
| SIPM | 6x6mm | 6x6mm |
| SIPM Numbers | 1~4 | 1~16 |
| Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | -10~ 40℃ | -10~ 40℃ |
| HV | 26~+31V | 26~+31V |
| Scintillator | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 |
| Humidity | ≤70% | ≤70% |
| Signal Amplitude | -50mv | -50mv |
| Energy resolution | ＜7.5% | ＜7.5% |
S2 Dimension S2 Connector
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification
Product renderings:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
