Product Details:
|
| Reflector: | MgO | Housing: | Aluminum |
|---|---|---|---|
| Scintillator: | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 | Crystal Size: | 2 Inch |
| HV: | 26~+31V | Humidity: | ≤70% |
| Signal Amplitude: | -50mv | Energy Resolution: | ＜7.5% |
| High Light: | Aluminum Housing CsI(Tl) Detector,CsI(Tl) SiPM Scintillator Detector,CsI(Tl) Scintillation Radiation Detector |
||

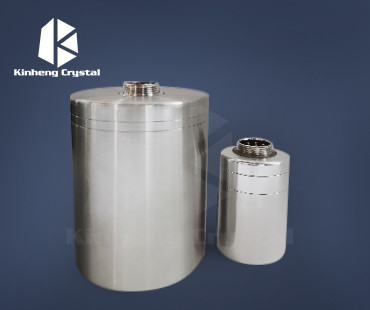

CsI(Tl) SiPM Scintillator detector
SiPMs require much less power than PMTs, typically by a factor of 20x – 30x lower operating voltage. SiPMs have a higher photon detection efficiency than PMTs for scintillation light. This creates larger signals with less stochastic and Poisson noise. PMTs are greatly affected by magnetic fields whereas SiPMs are insensitive to magnetic fields. The SiPM is a highly attractive alternative, providing all the benefits of a solid-state sensor while still achieving the low-light detection capabilities of the PMT.
Properties:
|
Model |
S-1 | S-2 |
| Crystal size | 1” | 2” |
| SIPM | 6x6mm | 6x6mm |
| SIPM Numbers | 1~4 | 1~16 |
| Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | -10~ 40℃ | -10~ 40℃ |
| HV | 26~+31V | 26~+31V |
| Scintillator | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 | NaI(Tl),CsI(Tl),GAGG,CeBr3,LaBr3 |
| Humidity | ≤70% | ≤70% |
| Signal Amplitude | -50mv | -50mv |
| Energy resolution | ＜7.5% | ＜7.5% |
S2 Dimension S2 Connector
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification
Product renderings:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
