Product Details:
|
| Reflector: | MgO | Energy Resolution: | 7-8.5% Cs137@662Kev |
|---|---|---|---|
| Encapsulation: | SS Housing | PMT: | 3" CR119 |
| Dimension: | 2”x4”x16”， 4”x4”x8” | Warranty: | One Year |
| HV: | 0~+1500V | Yealy Production: | 400pcs |
| High Light: | NaI Tl Scintillator Detector,Aerial Survey NaI Scintillation Detector,400mm NaI Scintillation Detector |
||

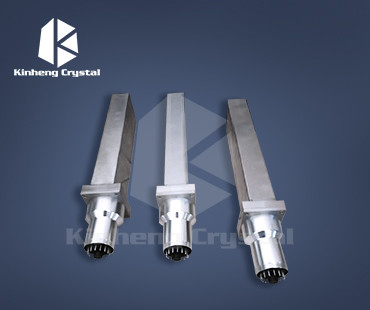

NaI(Tl) Scintillator Detector aerial survey 50x100x400mm
A gamma ray interacting with a scintillator produces a pulse of light that is converted to an electric pulse by a photomultiplier tube (PMT).Complete assemblies including the scintillator and PMT are available. Large-sized scintillator crystals have much higher detection efficiency than small-sized scintillator crystals.Kinheng can offer 100x100x100mm,50x100x400mm,100x100x200mm,100x100x400mm such kind of big sizes NaI(Tl) crystals.
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification
Properties:
|
Model Properties |
SD-1 | SD-2 | SD-2L | SD-4L |
| Crystal size | 1” | 2"&3" |
50x100x400mm 100x100x200mm |
100x100x400mm |
| PMT | CR125 | CR105,CR119 | CR119 | CR119 |
| Storage Temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ |
| HV | 0~+1500V | 0~+1500V | 0~+1500V | 0~+1500V |
| Scintillator | NaI(Tl) | NaI(Tl) | NaI(Tl) | NaI(Tl) |
| Operation Humidity | ≤70% | ≤70% | ≤70% | ≤70% |
| Energy resolution | 6% ~ 8% | 6% ~ 8% | 7% ~ 8.5% | 7% ~ 8.5% |
2" probe dimension
Pin Definition
Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
