Product Details:
|
| Encapsulation: | SS Housing | Scintillator Available: | NaI(Tl) |
|---|---|---|---|
| Size: | 100x100x400mm，4"x4"x16" | PMT: | CR119 |
| FWHM: | 8% ~ 8.5% | Storage Temperature: | -20 ~ 70℃ |
| Operation Temperature: | 0~ 40℃ | Warranty: | One Year |
| Operation Humidity: | ≤70% | ||
| High Light: | NaI Tl Scintillation Crystal Detector,PMT Scintillation Crystal Detector,4"X4"X16" NaI Scintillation Detector |
||

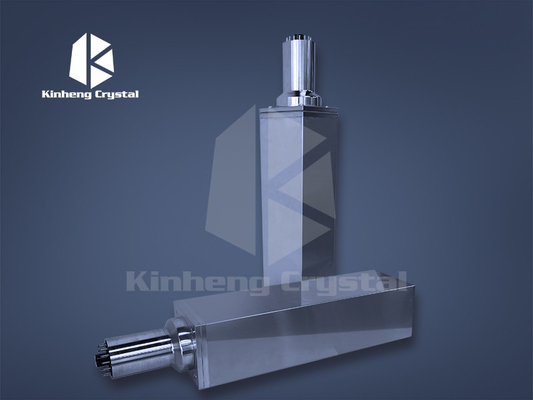

NaI(Tl) Scintillator Detector 4"x4"x16" Combined With PMT
Kinheng's Model SD-4L Scintillation Detector is a hermetically sealed assembly which includes a high resolution 4″x4″x16″ NaI(Tl) scintillator, a 3″ photomultiplier tube, an internal magnetic/light shield, an stainless steel housing and a 14-pin connector.
This 14-pin 4L NaI(Tl) detectors have good energy resolution(≤8.5%@662keV) and stability, their standard 14-pin connector can be easily inserted in plug-on photomultiplier tube(PMT) base or digital Multi-Channel Analyzer(MCA) for Gamma-ray detection systems.
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification
Properties:
|
Model Properties |
SD-1 | SD-2 | SD-2L | SD-4L |
| Crystal size | 1” | 2"&3" | 50x100x400mm | 100x100x400mm |
| PMT | CR125 | CR119 | CR119 | CR119 |
| Storage Temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ |
| HV | 0~+1500V | 0~+1500V | 0~+1500V | 0~+1500V |
| Scintillator |
NaI(Tl) |
NaI(Tl) | NaI(Tl) | NaI(Tl) |
| Operation Humidity | ≤70% | ≤70% | ≤70% | ≤70% |
| Energy resolution | 6% ~ 8% | 6% ~ 8% | 7% ~ 8.5% | 7% ~ 8.5% |
2" probe dimension
Pin Definition
Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
