GAGG PD Detector High Brightness Low Afterglow

Description
Name: GAGG Liner Detector Formula: Gd₃Al₂Ga₃O₁₂
Center Wavelength: 530 Z: 54.4
PD: 16 Elements Afterglow: 0.1% After 30ms
Energy Range: High Energy Light Yield: 50000
High Light:

GAGG PD Detector

,

Partial Discharge Detector Low Afterglow

,

PD Scintillation Crystal Detector

GAGG PD detector high brightness low afterglow



GAGG Ce scintillation crystal has good energy resolution, high light output, high density, no self radiation, no hygroscopic.

Kinheng owns completed process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clustomers, like the through hole, reflector coating, matrix design, etc..



Applications: Security inspection (border inspection, package inspection, airport check, etc.), high-energy container inspection, heavy vehicle inspection, NDT, 3D scanning, ore screening and other industrial fields.





1. Different materials’ performance parameters:



Scintillator material CsI(Tl) CdWO4 GAGG:Ce GOS:Pr/Tb Ceramic GOS:Tb Film
Light yield 54000 12000 50000 27000/45000 145% of DRZ High
Afterglow(after 30ms) 0.6-0.8% 0.1% 0.1-0.2% 0.01%/0.03% 0.008%
Decay Time(ns) 1000 14000 48, 90, 150 3000 3000
Hygroscopic Slightly None None None None
Energy range Low energy High energy High energy High energy Low energy
Overall costs Low High Middle High Low



2PD performance parameters



  1. Limit parameters:
Index Symbol Value Unit
Max Reverse Voltage Vrmax 10 v
Operation temperature Top -10 -- +60 °C
Storage temperature Tst -20 -- +70 °C



  1. PD photoelectric characteristics:
Parameter Symbol Term Typical value Max Unit
Spectral response ranges λp   350-1000 - nm
Peak response wavelength λ   800 - nm
Photosensitivity S λ=550 0.44 - A/W
λp=800 0.64
Dark current Id Vr=10mV 3 - 5 10 pA
Pixel capacitance Ct Vr=0,f=10kHz 40 - 50 70 pF





3PD Detector Drawing

GAGG PD Detector High Brightness Low Afterglow 0



(P1.6mm CsI(Tl)/ GOS:Tb Detector)



GAGG PD Detector High Brightness Low Afterglow 1



(P2.5mm GAGG/ CsI(Tl)/CdWO4 Detector)





Product shots:

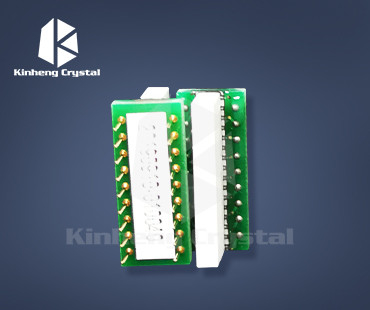

GAGG PD Detector High Brightness Low Afterglow 2

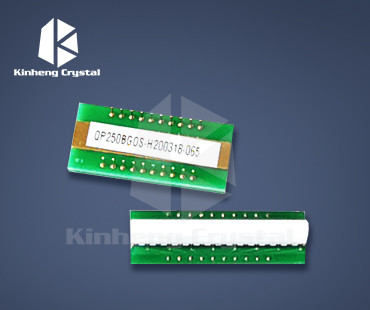

GAGG PD Detector High Brightness Low Afterglow 3



FAQ:

1.Q: What's the pixel number and dimension for GAGG liner detector available?

A: Kinheng has capacity to process Pitch 0.4, 0.78, 1.575, 2.5mm for liner detector, Usually we offer Liner 1x16 elements array for PD coupling.



2.Q:Where is your main market?

A:Europe, America, Asia.
