Product Details:
|
| Material: | GOS:Pr/Tb Ceramic | Readout: | Photodiode |
|---|---|---|---|
| Application: | Security Inspection, Container Inspection, Heavy Vehicle Inspection, NDT, Ore Screening Industries. | Light Yield: | 27000/45000 |
| Afterglow(after 30ms): | 0.01%/0.03% | Decay Time(ns): | 3000 |
| Hygroscopic: | None | Energy Range: | High Energy |
| High Light: | Photodiode Readout Scintillation Crystal Detector,GOS Scintillation Crystal Detector,Photodiode Readout PD Detector |
||
GOS:Pr/Tb Scintillator Detector Photodiode Readout
1. Different materials’ performance parameters:
| Scintillator material | CsI(Tl) | CdWO4 | GAGG:Ce | GOS:Pr/Tb Ceramic | GOS:Tb Film |
| Light yield | 54000 | 12000 | 50000 | 27000/45000 | 145% of DRZ High |
| Afterglow(after 30ms) | 0.6-0.8% | 0.1% | 0.1-0.2% | 0.01%/0.03% | 0.008% |
| Decay Time(ns) | 1000 | 14000 | 48, 90, 150 | 3000 | 3000 |
| Hygroscopic | Slightly | None | None | None | None |
| Energy range | Low energy | High energy | High energy | High energy | Low energy |
| Overall costs | Low | High | Middle | High | Low |
2．PD performance parameters
| Index | Symbol | Value | Unit |
| Max Reverse Voltage | Vrmax | 10 | v |
| Operation temperature | Top | -10 -- +60 | °C |
| Storage temperature | Tst | -20 -- +70 | °C |
| Parameter | Symbol | Term | Typical value | Max | Unit |
| Spectral response ranges | λp | 350-1000 | - | nm | |
| Peak response wavelength | λ | 800 | - | nm | |
| Photosensitivity | S | λ=550 | 0.44 | - | A/W |
| λp=800 | 0.64 | ||||
| Dark current | Id | Vr=10mV | 3 - 5 | 10 | pA |
| Pixel capacitance | Ct | Vr=0,f=10kHz | 40 - 50 | 70 | pF |
3．PD Detector Drawing
(P1.6mm CsI(Tl)/ GOS:Tb Detector)
(P2.5mm GAGG/ CsI(Tl)/CdWO4 Detector)

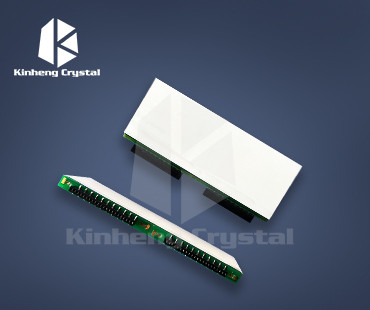

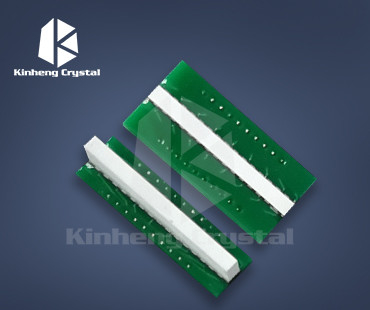

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
