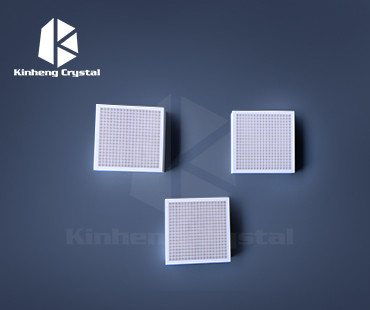

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array
Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array

Large Image :  Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array

Description
Material: CsI(Tl) Scintillator Reflector: TiO2
Afterglow (after 30ms): 0.6-0.8% Cleavage Plane: None
Hygroscopic: Slightly Warranty: One Year
Application: High Energy Physics,well Logging, Space Research Cleavage Plane: No
High Light:

Good radiation hardness Scintillator Array

,

plastic mechanical Scintillator Array

,

CsI Crystal Array

Good radiation hardness and plastic mechanical properties CsI(Tl) scintillator array



CsI(Tl) has very good stopping power, is slightly hygroscopic and with good plastic mechanical properties. Combined with relatively good radiation hardness properties, CsI(Tl) is also well suited for High Energy Physics.CsI is relatively soft and plastic and does not cleave. Because it has no cleavage plane, it is quite rugged – which makes it well-suited for well logging, space research or other applications where severe shock conditions are encountered.



Why Choose Kinheng:

1.Minimal pixel dimension available

2.Reduced optical crosstalk

3.Good uniformity between pixel to pixel/ Array to array

4.TiO2/BaSO4/ESR/E60 reflectors available

5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm

6.Performance testing available



Materials' Properties Comparison:



Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Pr/Tb) Ceramic
Density(g/cm3) 4.51 6.6 7.9 7.15 7.3~7.4 7.13 7.34
Hygroscopic Slightly No No No No No No
Relative light output(% of NaI(Tl)) (for γ-rays) 45 158(HL)/ 132(BL)/79(FD) 32 65-75 75 15-20 71/ 118
Decay time(ns) 1000 150(HL)/ 90(BL)/48(FD) 14000 38-42 40 300 3000/ 600000
Afterglow@30ms 0.6-0.8% 0.1-0.2% 0.1-0.2% N/A N/A 0.1-0.2% 0.1-0.2%
Array type Linear and 2D Linear and 2D Linear and 2D 2D 2D 2D Linear and 2D



Mechanical design for assembling:



Based on the end use of assembled array, there are many kinds of mechanic design from Kinheng to meet the medical and security inspection industry.

1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode linear array for read out.

2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO scintillator etc.

Below is kinheng’s typically design drawing for 1D And 2D array for industry.

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array 0

                                                           (Kinheng linear array)



Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array 1

                                                             (Kinheng 2D array)



Typical Pixel size& numbers:



Material Typical pixel size Typical numbers
Linear 2D Linear 2D
CsI(Tl) 1.275x2.7 1x1mm 1x16 19x19
GAGG 1.275x2.7 0.5x0.5mm 1X16 8x8
CdWO4 1.275x2.7 3x3mm 1x16 8x8
LYSO/LSO/YSO N/A 1X1mm N/A 25x25
BGO N/A 1x1mm N/A 13X13
GOS(Tb/Pr) ceramic 1.275X2.7 1X1mm 1X16 19X19



Minimal size of Pixel:



Material Minimal pixel size
Linear 2D
CsI(Tl) 0.4mm pitch 0.5mm pitch
GAGG 0.4mm pitch 0.2mm pitch
CdWO4 0.4mm pitch 1mm pitch
LYSO/LSO/YSO N/A 0.2mm pitch
BGO N/A 0.2mm pitch
GOS(Tb/Pr) ceramic 0.4mm pitch 1mm pitch



Scintillation Array Reflector and Adhesive parameter :



Reflector Thickness of Reflector+Adhesive
Linear 2D
TiO2 0.1-1mm 0.1—1mm
BaSO4 0.1mm 0.1-0.5mm
ESR N/A 0.08mm
E60 N/A 0.075mm



Application:

Item name CsI(Tl) GAGG CdWO4 LYSO LSO BGO GOS(Tb/Pr) Ceramic
PET, ToF-PET   Yes   Yes Yes
SPECT Yes Yes
CT       Yes Yes Yes Yes
NDT Yes Yes Yes
Bagger scanner Yes Yes Yes
Container Checking Yes Yes Yes
Gamma camera Yes Yes



Product shots:



Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array 2

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array 3

Good Radiation Hardness And Plastic Mechanical Properties CsI Tl Scintillator Array 4



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
