Product Details:
|
| Housing: | Aluminum | Scintillator: | NaI(Tl) |
|---|---|---|---|
| Dimension: | 1",2",3",50x100x400mm,100x100x400mm | PMT: | CR125，CR119，CR173 |
| Gain: | 1~5 | FWHM: | 6% ~ 8.5% |
| Connector Type: | GX16 BNC SHV | Operation Temperature: | ≤70% |
| HV: | 0~+1250V | ||
| High Light: | Integrated Electronics Circuit Scintillator Detector,Scintillation NaI Gamma Detector,Tl Organic Scintillation Detector |
||

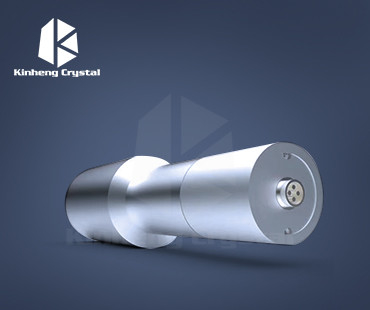

NaI(Tl) Scintillation Detector Intergrated Electronics Circuit Radiation dose measurement and Spectrum analysis
Properties:
|
Model Properties |
ID-1 | ID-2 | ID-2L | ID-4L |
| Crystal | 1” | 2”& 3” | 50x100x400mm | 100x100x400mm |
| PMT | CR125 | CR173 | CR119 | CR119 |
| Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ |
| HV | 0~+1250V | 0~+1250V | 0~+1250V | 0~+1250V |
| Scintillator |
NaI(Tl) |
NaI(Tl) |
NaI(Tl) | NaI(Tl) |
| Operation temperature | ≤70% | ≤70% | ≤70% | ≤70% |
| Internation HV integrated | N/A | Applicable | Applicable | Applicable |
| Gain | 1~5 | 1~5 | 1~5 | 1~5 |
| Energy resolution | 6% ~ 8% | 6% ~ 8% | 6% ~ 8.5% | 6% ~ 8.5% |
| Connector Type |
GX16
|
GX16 BNC SHV |
GX16 | GX16 |
3” detectors design
3” ID detector connector
Application:
Radiation dose measurement
Spectrum analysis
Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
