Product Details:
|
| Encapsulation: | Al Housing,SS Housing | Scintillator Available: | NaI(Tl) |
|---|---|---|---|
| Crystal Size: | 1",2",3",50x100x400mm,100x100x400mm | Hamamatsu PMT: | CR125,CR119 |
| Storage Temperature: | -20 ~ 70℃ | Operation Temperature: | 0~ 40℃ |
| Warranty: | One Year | Energy Resolution 1: | 6% ~ 8%（1”,2“,3”） |
| Energy Resolution 2: | 7% ~ 8.5%（2L,4L) | ||
| High Light: | Nuclide Identification NaI Scintillator Detector,Spectrum Analysis NaI Scintillator Detector,Tl Sodium Iodide Scintillation Detector |
||
NaI(Tl) Scintillator Detector Energy measurement Spectrum analysis Nuclide identification
NaI(Tl) detectors encapsulate NaI(Tl) crystal and PMT into one, which overcomes the hygroscopic disadvantage,also when packaging PMT, use geomagnetic shielding material to effectively reduce the influence of geomagnetic field on the detector.
Kinheng can offer a wide range of NaI(Tl) detectors, include the size 1x1",2"x2",3"x3",2L and 4L with very competitive price.
Properties:
|
Model Properties |
SD-1 | SD-2 | SD-2L | SD-4L |
| Crystal size | 1” | 2"&3" | 50x100x400mm | 100x100x400mm |
| PMT | CR125 | CR119 | CR119 | CR119 |
| Storage Temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ |
| HV | 0~+1500V | 0~+1500V | 0~+1500V | 0~+1500V |
| Scintillator |
NaI(Tl) |
NaI(Tl) | NaI(Tl) | NaI(Tl) |
| Operation Humidity | ≤70% | ≤70% | ≤70% | ≤70% |
| Energy resolution | 6% ~ 8% | 6% ~ 8% | 7% ~ 8.5% | 7% ~ 8.5% |
2" probe dimension
Pin Definition
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification

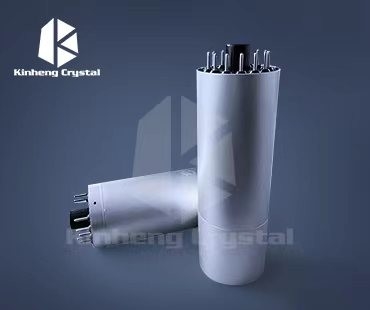

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
