Product Details:
|
| Applicable PMT: | 2” OR Above | Scintillator Detector: | NaI(Tl)/ LaBr3 |
|---|---|---|---|
| Power Supply: | 5V | Model: | MCA-2048 |
| Communication: | USB | Max Channel: | 2048 |
| Power Protection: | Anti Static Protection | Communication Rate: | 1.8W |
| Expansion Board: | No | ||
| High Light: | Airborne Gamma Multi Channel Analyser,5V multiple channel analyzer,Multi Channel Analyser MCA-2048 |
||
Airborne gamma measurement Digital Multi Channel Analyser(MCA-2048)
DMCA is a gamma spectroscopy acquisition module. It can be used for teaching and energy spectrum analysis. Kinheng Provide 2 types DMCA based on application.There are mainly three models could be provided,they are MCA-1024, MCA-2048 and MCA-X.
Properties:
|
Model Parameter |
MCA-1024 | MCA-2048 | MCA-X |
| Applicable PMT | 2” OR Above | 2” OR Above | 2” OR Above |
| PMT model No. | CR173 CR160 CR119 XP3330 S600-8532 R1307 | ||
| Storage temperature | -40 ~ 70℃ | -40 ~ 70℃ | -40 ~ 70℃ |
| Applicable temperature | -20~ 55℃ | ||
| HV supply | 0~+1250V | ||
|
Scintillator Detector |
NaI(Tl)/ LaBr3 | ||
| Humidity | ≤70% | ||
| Power Supply | 5V | 5V | 5V 12V 19V 24V |
| Spectrum stabilization | Applicable | ||
| Communication | TTL | USB | 485 |
| Max Channel | 1024 | 2048 | 32768 |
| Power Protection | NOT | Anti static protection |
Static Overvoltage Overcurrent Thunderstrike |
| Communication rate | 115200 | 460800 | 460800 |
| Power dissipation | 1.4W | 1.8W | 3.5W |
| Expansion board | Yes | No | No |
| Property | Parameter |
| Pulse pass rate | ≥ 1 million cps |
| Number of channels | 1024/2048/4096 (optional), 4 bytes per channel |
| Resolution | ≤3.5% (1.5 inch bismuth bromide probe) |
| Power consumption | typical 1.5W |
| Weight | 550 g |
| Operating temperature | -20 ° C ~ 55 ° C (optional -40 ° C ~ 85 ° C) |
| Dimensions | Φ62.5mm χ 80 mm (very small, full grip) |
| Storage | with energy spectrum storage |
| Alarm | high count buzzer alarm |
| Timing measurement | 1 ~ 65535 seconds can be set (hardware level, accuracy 8ns) |
| Storage temperature | -40 ° C ~ 85 ° C |
| Stable spectrum interface |
high voltage stability spectrum (accuracy 0.02V), temperature stability spectrum (accuracy 0.08 °C) |
| Communication | USB (providing driver) |
| Expandability |
Provide B3 board position, defined by customers (such as nuclide identification, stabilization, communication protocol conversion, etc.) |
| Stable spectrum range | -55 ° C ~ 125 ° C (accuracy 0.08 ° C) |
MCA-2048 Dimension
Advantage:
1.Portable
2.Low cost
Application:
1.Handheld nuclide identifier
2.Iodine 131 measuring device
3.Portal radioactive contamination test
4.Airborne gamma measurement
5.Nuclear power plant radiation monitoring
6.University research equipment
7.Nuclear power plant F18 measuring device
8.Anti-Campton anti-cosm ray energy spectrum measurement
9.Neutron spectrometer
10.α spectrometer
11.4G mobile radiation monitoring station
12.CZT spectrometer

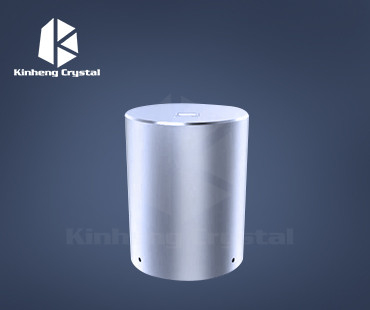

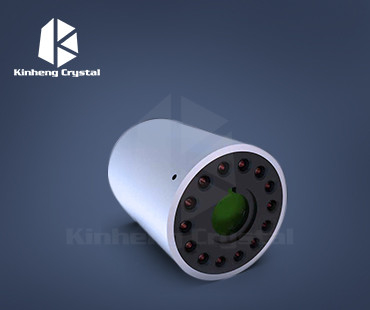

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
