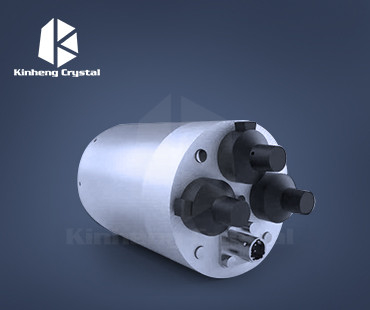

1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis

1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis
1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis

Large Image :  1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis

Description
Model: PS-1 PMT Diameter: 1"
PMT Model: CR125、CR284、CR332 Storage Temperature: -55 ~ 70℃
Operation Temperature: -40~ 55℃ HV: 0~+1250V
Low Voltage: ±5V Signal Amplitude: -1V
High Light:

1" multiple channel analyzer

,

PMT Single Output Module PS-1

,

Kinheng multiple channel analyzer

PS Series Electronics for PMT single output module PS-1 spectrum analysis



Description:PS series Electronics module, applicable for PMT single output module.

Ps-1 needs seperate HV, low voltage and signal output. It can be connected with our SD series detector for radiation measurement, gamma ray detection and spectrum analysis.



Properties:



Model



PS-1 PS-2
PMT 1” 2”or above
PMT Model CR125,CR284,CR332 CR173,CR119,CR160
Storage temperature -55 ~ 70℃ -55 ~ 70℃
Operation Temperature -40~ 55℃ -40~ 55℃
HV 0~+1250V None
Low Voltage ±5V +5V
Signal amplitude -1V -1V
Signal Polarity Negative Negative
Signal baseline ±20mV ±20mV
Signal output type Negative exponential decay pulse Negative exponential decay pulse
Operation Humidity ≤70% ≤70%





1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis 0               1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis 1



                          PS-1                                                       PS-2 - Adjustable for HV, signal amplitude, signal width





Application:

PMT + Scintillator Assembly Signal Extraction

Detector testing

Spectrum analysis



Product shots:



1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis 2

1" Multiple Channel Analyzer For PMT Single Output Module PS-1 Spectrum Analysis 3
