Product Details:
|
| Encapsulation: | Al Housing,SS Housing | Scintillator Available: | NaI(Tl) |
|---|---|---|---|
| Size: | 1",2",3",50x100x400mm,100x100x400mm | Hamamatsu PMT: | CR125,CR119 |
| FWHM: | 6% ~ 8.5% | Storage Temperature: | -20 ~ 70℃ |
| Operation Temperature: | 0~ 40℃ | Warranty: | One Year |
| Operation Humidity: | ≤70% | ||
| High Light: | NaI(Tl) Scintillator Detector,PMT detector crystal,100x100x400mm Scintillator Detector |
||
SD Series Detector crystal combined with PMT NaI(Tl) Scintillator detector
Kinheng provide Separated detectors which are combined scintillator with PMT. SD series Detectors are widely used for hygroscopic materials including NaI(Tl), LaBr3:Ce, CLYC, SD has advantage for Anti-hygroscopic, Anti- magnetic field interference. Applicable for pulse counting, spectrum analysis and radiation dose measurement.
Properties:
|
Model Properties |
SD-1 | SD-2 | SD-2L | SD-4L |
| Crystal size | 1” | 2"&3" | 50x100x400mm | 100x100x400mm |
| PMT | CR125 | CR119 | CR119 | CR119 |
| Storage Temperature | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ | -20 ~ 70℃ |
| Operation temperature | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ | 0~ 40℃ |
| HV | 0~+1500V | 0~+1500V | 0~+1500V | 0~+1500V |
| Scintillator |
NaI(Tl) |
NaI(Tl) | NaI(Tl) | NaI(Tl) |
| Operation Humidity | ≤70% | ≤70% | ≤70% | ≤70% |
| Energy resolution | 6% ~ 8% | 6% ~ 8% | 7% ~ 8.5% | 7% ~ 8.5% |
2" probe dimension
Pin Definition
Application:
Radiation dose measurement
Energy measurement
Spectrum analysis
Nuclide identification

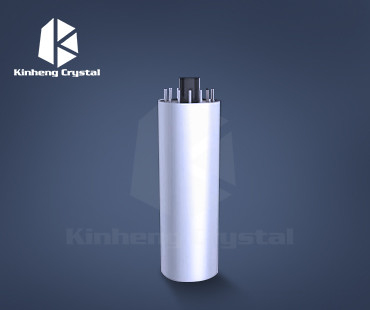

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
