NaI CsI Scintillation Detector Low Energy X Ray Detector Be Window Detector

Description
Housing: Aluminum Scintillator: NaI(Tl),CsI(Tl)
Crystal Size: 1inch PMT: CR125
HV: 0~+1250V Energy Resolution: <60%@5.9Kev(Fe-55)
Storage Temperature: -20 ~ 70℃ Operation Temperature: 0~ 40℃
High Light:

NaI CsI Scintillation detector

,

1inch x ray scintillator

,

Scintillation detector

SiPM Series 2inch Radiation dose measurement S2 NaI Scintillator detector



Kinheng designed Be window detectors for Low energy X ray detector. According to the traditional encapsulation method, the detection efficiency of X-ray is low. X ray detector used 0.2mm Be window to replace traditional 0.8mm aluminum can. the X-ray detection efficiency was improved significantly. X Series detector follows the design idea of detachable and replaceable. It can use either NaI(Tl) crystal with output pulse width of 1.5us or LaBr3:Ce crystal with output pulse of 0.5us to meet the measurement requirements of high and low doses.

Properties:

Model

X-1
Crystal size 1”
PMT CR125
Storage temperature -20 ~ 70℃
Operation temperature 0~ 40℃
HV 0~+1250V
Humidity ≤70%
Energy resolution <60%@5.9Kev(Fe-55)
Crystal type NaI(Tl)/CsI(Tl)



NaI CsI Scintillation Detector Low Energy X Ray Detector Be Window Detector 0

                                             Outer dimension





NaI CsI Scintillation Detector Low Energy X Ray Detector Be Window Detector 1

                                                   Connector

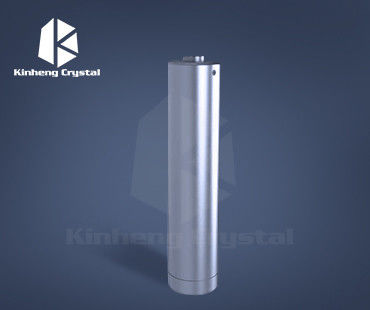

Product shots:

NaI CsI Scintillation Detector Low Energy X Ray Detector Be Window Detector 2



NaI CsI Scintillation Detector Low Energy X Ray Detector Be Window Detector 3
