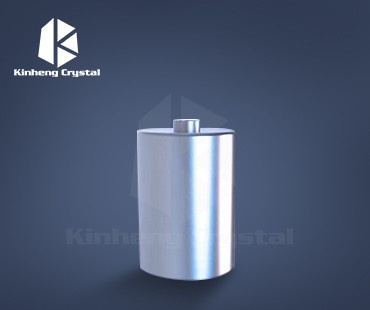

NaI(Tl) Scintillator Detector SiPM

NaI(Tl) Scintillator Detector SiPM
NaI(Tl) Scintillator Detector SiPM

Large Image :  NaI(Tl) Scintillator Detector SiPM

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

NaI(Tl) Scintillator Detector SiPM

Reflector: MgO Housing: Aluminum
Scintillator: NaI(Tl) Crystal Size: 2 Inch
HV: 26~+31V Humidity: ≤70%
Signal Amplitude: -50mv Energy Resolution: <7.5%
High Light:

NaI Scintillator Detector


2 inch NaI(Tl) crystals


2inch Scintillator Detector

SiPM Series 2inch Radiation dose measurement S2 NaI(Tl) Scintillator detector


Thallium doped Sodium Iodide – NaI(Tl) crystals are available in a wide range of standard sizes and configurations either as separate crystals or in complete assemblies. Maximum light transfer is achieved by employing a high efficiency reflector chosen to suit the particular application for which the crystal is required. Materials used are selected to ensure low background count.

Kinheng designed first generation SiPM semiconductor detector, The new technology supported PMT replace with SiPM. This new generation detector make the equipment miniaturization.





S-1 S-2
Crystal size 1” 2”
SIPM 6x6mm 6x6mm
SIPM Numbers 1~4 1~16
Storage temperature -20 ~ 70℃ -20 ~ 70℃
Operation temperature -10~ 40℃ -10~ 40℃
HV 26~+31V 26~+31V
Scintillator NaI(Tl) NaI(Tl)
Humidity ≤70% ≤70%
Signal Amplitude -50mv -50mv
Energy resolution <7.5% <7.5%


NaI(Tl) Scintillator Detector SiPM 0NaI(Tl) Scintillator Detector SiPM 1

                           S2 Dimension                                                                     S2 Connector



Radiation dose measurement

Energy measurement

Spectrum analysis

Nuclide identification


Product renderings:

NaI(Tl) Scintillator Detector SiPM 2

NaI(Tl) Scintillator Detector SiPM 3



1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.


2.Q:Where is your main market?

A:Europe, America, Asia.
