LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring

LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring
LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring

Large Image :  LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring

Description
Encapsulation: Aluminum Product Name: LaCl3 Scintillator DMCA Detector
DMCA: Available Configuration: PMT
Advantage: High Counting Rate,good Energy Resolution,high Light Output Materail: LaCl3 Scintillator, LaCl3 Crystal
Size: 1"x1";1.5"x1.5";2"x2" Work Temperature: 0℃ ~ +40
Storage Temperature: -20 ~ 55
High Light:

LaCl3 Scintillator Detector

,

PMT scintillation crystal

,

2"x2" Scintillator Detector

Excellent energy resolution environmental monitoring LaCl3 Scintillator Detector



LaCl3(Ce) | Scintillation Crystal is a new generation of nuclear radiation detection materials. It has high energy resolution and time resolution, good energy non-linearity, and fast decay time. Its light yield is equivalent to NaI:Tl crystal, and the decay time is 1/10 of NaI:Tl. The energy resolution is 1/2~1/3 times of NaI:Tl and it also has good mechanical properties. Additionally, LaCl3(Ce) crystal has good temperature properties and a wide temperature range with good energy resolution consistency.

Performance of a LaCl3(Ce) scintillator for application in environmental gamma-ray dosimetry and spectrometry has been studied over a wide range of dose rates. The results of our experiments reflect its excellent physical properties, affording better energy resolution and faster response than NaI(Tl). A LaCl3(Ce) scintillator favorably replaces the NaI(Tl) scintillator in the environmental monitoring, especially under emergency situation.




Properties:

Specification Range Unit
Scintillator Effective Size φ25 X 25 mm
Input Voltage 11.5 ~12.5 V
Input Current ≤60 mA
Output Polarity Positive Polarity -
Output Amplitude (MAX)1) 9 V
Output Amplitude(TYPE)2) 1 V
Resolution(Cs137)3) ≤4.5 %
<span color:black;background:white;"="" style="font-size: 1pt;"> Background Count Rate(30kev~3Mkev) ≤250 min-1
Work Temperature 0℃ ~ +40
Storage Temperature -20 ~ 55
Humidity ≤90 %

Notes:
1.Detector signal exceeds this value, a truncation will occur.
2.The amplitude of signal is usually less than 1V in spectrum analysis.
3.The value is measured when detector preheated for 10 minutes, the counting rate within 1000, total counting number is less than 105 in Cs137 peak.



Advantage:

Good energy resolution

High light output

High counting rate



Application:

Environmental monitoring
Oil well logging
Nuclear medicine
Nuclear medicine Security
Anti-terrorist
Nuclide identification

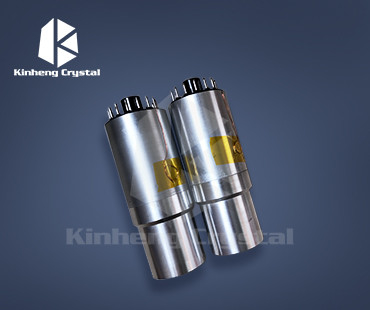

Product shots:

LaCl3 Scintillator Detector Excellent Energy Resolution Environmental Monitoring 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
