Good Electro-Optic Properties Color TV LiTaO3 Substrate Single Crystal

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Good Electro-Optic Properties Color TV LiTaO3 Substrate Single Crystal

Good Electro-Optic Properties Color TV LiTaO3  Substrate Single Crystal
Good Electro-Optic Properties Color TV LiTaO3  Substrate Single Crystal

Large Image :  Good Electro-Optic Properties Color TV LiTaO3 Substrate Single Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Good Electro-Optic Properties Color TV LiTaO3 Substrate Single Crystal

Description
Purity(%): >99.99 Material: Lithium Tantalate Crystal
Product Name: LiTaO3 Substrate Chemical Formula: LiTaO3
Solubility In Water: Insoluble In Water Resistance Coefficient: 1015wm
Dielectric Constants: Es11/eo:39~43 Es33/eo:42~43 Et11/eo:51~54 Et33/eo:43~46 Thermal Expansion: Aa=1.61×10-6/k,ac=4.1×10-6/k
High Light:

6 Mho LiTaO3 substrate

,

Colorless Lithium tantalate crystal

,

M6 LiTaO3 substrate

Good electro-optic properties color TV LiTaO3 Single crystal Substrate



Lithium tantalate (LiTaO3) has a perovskite M6 crystal structure. It has a unique combination of optical, piezoelectric and pyroelectric properties. The applications of lithium tantalate crystal include nonlinear optics, passive infrared (IR) sensors such as motion detectors, terahertz (THz) generation and detection, surface acoustic wave (SAW), etc..



Properties:



Crystal Structure M6
Unit Cell Constant a=5.154Å c=13.783 Å
Melt Point(℃) 1650
Density(g/cm3) 7.45
Hardness (Mho) 5.5~6
Color Colorless
Index of Refraction no=2.176 ne=2.180 (633nm)
Through Scope 0.4~5.0mm
Resistance Coefficient 1015wm
Dielectric Constants es11/eo:39~43 es33/eo:42~43
et11/eo:51~54 et33/eo:43~46
Thermal Expansion aa=1.61×10-6/k,ac=4.1×10-6/k



Advantage:

1.Good electro-optic, piezoelectric and pyroelectric properties

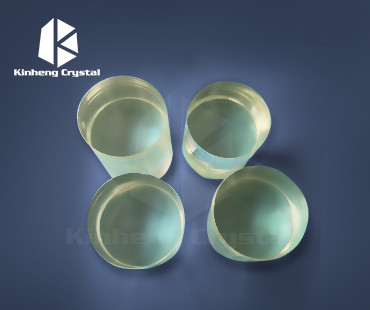

Product shots:



Good Electro-Optic Properties Color TV LiTaO3  Substrate Single Crystal 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
