Product Details:
|
| Product Name: | DMCA | Full Name: | Digital Multi Channel Analyser |
|---|---|---|---|
| Type: | Wifi, USB | Warranty: | One Year |
| Alarm: | High Count Buzzer Alarm | Timing Measurement: | 1 ~ 65535 Seconds Can Be Set (hardware Level, Accuracy 8ns) |
| Storage Temperature: | -40 ° C ~ 85 ° C | Advantage: | Low Cost |
| Application: | Radiation Monitoring,gamma/neutron Spectroscopy | ||
| High Light: | Wifi Multi Channel Analyser,DMCA multi channel analyser,Multi Channel Analyser USB Type |
||
Low cost and portable USB type DMCA Digital Multi Channel Analyser
The KH-DMCA is a gamma spectroscopy acquisition module. Mainly for OEM manufacturers. It can be used for teaching and energy spectrum research.
DMCA communicates with energy spectrum processing terminal(for example: PC) by high-speed RS485 bus interface. The software on PC can control DMCA and display energy spectrum. And the energy spectrum of 137Cs is given,which is obtained from NaI(Tl) detector and processed by DMCA.
Kinheng Provide 2 types DMCA based on application.
Properties:
| Property | Parameter |
| Pulse pass rate | ≥ 1 million cps |
| Number of channels | 1024/2048/4096 (optional), 4 bytes per channel |
| Resolution | ≤3.5% (1.5 inch bismuth bromide probe) |
| Power consumption | typical 1.5W |
| Weight | 550 g |
| Operating temperature | -20 ° C ~ 55 ° C (optional -40 ° C ~ 85 ° C) |
| Dimensions | Φ62.5mm χ 80 mm (very small, full grip) |
| Storage | with energy spectrum storage |
| Alarm | high count buzzer alarm |
| Timing measurement | 1 ~ 65535 seconds can be set (hardware level, accuracy 8ns) |
| Storage temperature | -40 ° C ~ 85 ° C |
| Stable spectrum interface |
high voltage stability spectrum (accuracy 0.02V), temperature stability spectrum (accuracy 0.08 °C) |
| Communication | USB (providing driver) |
| Expandability |
Provide B3 board position, defined by customers (such as nuclide identification, stabilization, communication protocol conversion, etc.) |
| Stable spectrum range | -55 ° C ~ 125 ° C (accuracy 0.08 ° C) |
Advantage:
1.Portable
2.Low cost
Application:
1.Handheld nuclide identifier
2.Iodine 131 measuring device
3.Portal radioactive contamination test
4.Airborne gamma measurement
5.Nuclear power plant radiation monitoring
6.University research equipment
7.Nuclear power plant F18 measuring device
8.Anti-Campton anti-cosm ray energy spectrum measurement
9.Neutron spectrometer
10.α spectrometer
11.4G mobile radiation monitoring station
12.CZT spectrometer

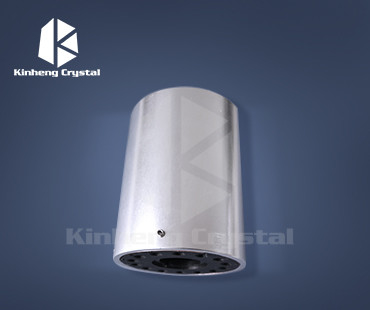

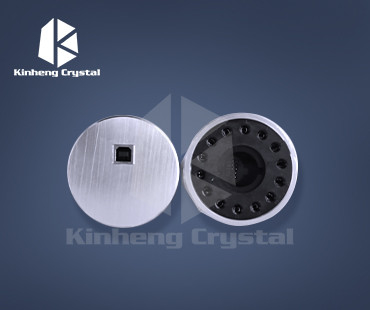

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
