Product Details:
|
| Crystal Structure: | M | Unit Cell Constant: | A=5.154Å C=13.783 Å |
|---|---|---|---|
| Melt Point(℃): | 1650 | Density(g/cm3): | 7.45 |
| Hardness (Mho): | 5.5~6 | Color: | Colorless |
| Index Of Refraction: | No=2.176 Ne=2.180 (633nm) | Through Scope: | 0.4～5.0mm |
Good piezoelectric and pyroelectric properties LiTaO3 Single crystal Substrate
LiTaO3 single crystal has very good electro-optic, piezoelectric and pyroelectric properties, and is widely used in pyroelectric devices and color TV.
Properties:
| Crystal Structure | M6 |
| Unit Cell Constant | a=5.154Å c=13.783 Å |
| Melt Point(℃) | 1650 |
| Density(g/cm3) | 7.45 |
| Hardness (Mho) | 5.5~6 |
| Color | Colorless |
| Index of Refraction | no=2.176 ne=2.180 (633nm) |
| Through Scope | 0.4～5.0mm |
| Resistance Coefficient | 1015wm |
| Dielectric Constants | es11/eo:39~43 es33/eo:42~43 et11/eo:51~54 et33/eo:43~46 |
| Thermal Expansion | aa=1.61×10-6/k,ac=4.1×10-6/k |
Advantage:
1.Good electro-optic, piezoelectric and pyroelectric properties

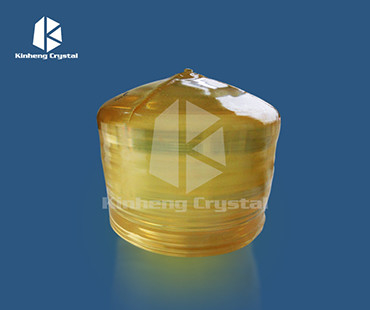

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
