LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching

LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching
LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching

Large Image :  LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching

Description
Growth Method: Czochralski Method Crystal Structure: M3
Unit Cell Constant: A=b=5.148Å C=13.863 Å Melt Point(℃): 1250
Density(g/cm3): 4.64 Hardness (Mho): 5
Through Scope: 0.4-2.9um Index Of Refraction: No=2.286 Ne=2.203 (632.8nm)
High Light:

LiNbO3 Single Crystal Substrate

,

5Mho linbo3 substrate

,

M3 Single Crystal Substrate

Strongly birefringent Q-switching LiNbO3 Substrate Single crystal Substrate



LiNbO3 Crystal has unique electro-optical, piezoelectric, photoelastic and nonlinear optical properties. They are strongly birefringent. They are used in laserfrequency doubling, nonlinear optics, Pockels cells, optical parametric oscillators, Q-switching devices for lasers, other acousto-opticdevices, optical switches for gigahertz frequencies, etc. It is an excellent material for manufacture of optical waveguides, etc.



Properties:



Growth Method Czochralski method
Crystal Structure M3
Unit Cell Constant a=b=5.148Å c=13.863 Å
Melt Point(℃) 1250
Density(g/cm3) 4.64
Hardness (Mho) 5
Through Scope 0.4-2.9um
Index of Refraction no=2.286 ne=2.203 (632.8nm)
Nonlinear Coefficient d33=34.45,d31=d15=5.95,d22=13.07 (pmv-1)
Denko Coefficient γ13=8.6,γ22=3.4,γ33=30.8,γ51=28.0,γ22=6.00(pmv-1)
Through Scope 370~5000nm >68% (632.8nm)
Thermal Expansion a11=15.4×10-6/k,a33=7.5×10-6/k



Advantage:

1.Piezoelectric, photoelectric and acousto-optic characteristics

2.Low acoustic wave transmission loss

3.Low surface acoustic wave propagation speed

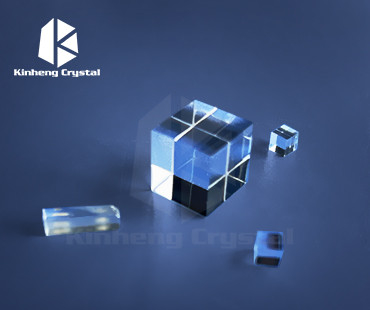

Product shots:

LiNbO3 Substrate Single Crystal Substrate Strongly Birefringent Q-Switching 0



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
