Product Details:
|
| Crystal Structure: | Cubic | Lattice Constant: | A = 8.085Å |
|---|---|---|---|
| Melting Point(℃): | 2130 | Density(g/cm3): | 3.64 |
| Hardness (Mho): | 8 | Color: | White Transparent |
| Thermal Expansion Coefficient: | 7.45 × 10 (-6) / ℃ | Propagation Loss (9GHz): | 6.5db/us |
| High Light: | MgAl2O4 Single Crystal Substrate,transparent Crystal Substrate,Sonic Single Crystal Substrate |
||
Used in sonic and microwave devices MgAl2O4 single crystal substrate
Magnesium aluminate (MgAl2O4) single crystals are widely used in sonic and microwave devices and epitaxial MgAl2O4 substrates of III-V nitride devices. The MgAl2O4 crystal was previously difficult to grow because it is difficult to maintain its single crystal structure.
Properties:
| Crystal Structure | Cubic |
| Lattice Constant | a = 8.085Å |
| Melting Point(℃) | 2130 |
| Density(g/cm3) | 3.64 |
| Hardness (Mho) | 8 |
| Color | White transparent |
| Propagation Loss (9GHz) | 6.5db/us |
| Crystal Orientation | <100>, <110>, <111> Tolerance: + / -0.5 degrees |
| Size | dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm |
| Polishing | Single-sided polished or double-sided polished |
| Thermal Expansion Coefficient | 7.45 × 10 (-6) / ℃ |
Advantage:
1.Microwave devices

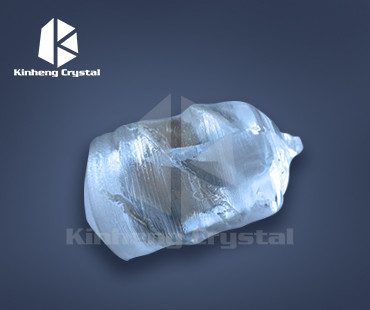

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
