Product Details:
|
| Crystal Structure: | Cubic, A=3.905 A | Growth Method: | Vernuil |
|---|---|---|---|
| Density(g/cm3): | 5.175 | Melting Point(℃): | 2080 |
| Hardness (Mho): | 6 | Thermal Expansion: | 10.4 (x10-6/ ℃) |
| Dielectric Constant: | ~ 300 | Chemical Stability: | Insoluble In Water |
| High Light: | 6 Mho Single Crystal Substrate,Vernuil SrTiO3 Substrate,SrTiO3 Single Crystal Substrate |
||
Good lattice structure SrTiO3 substrate Single Crystal Substrate
SrTiO3 single crystal has good lattice structure of perovskite structure material. It is an excellent substrate material for epitaxy growth of HTS and most oxide films. It has been widely used in the research of high temperature superconducting thin films. It is also widely used in special optical windows and high quality sputtering targets.
Properties:
· Orientation: (100) +/-0.5 Deg
· Edge orietation Indication: <001> +/-2 Deg avaiable as option with extra cost
· Polish: One side EPI polished by CMP tecnology with less sub-surface lattice damage.
· Pack: Packed in 100 grade plastic bag under 1000 class clean room.
·
| Crystal Structure | Cubic, a=3.905 A |
| Growth Method | Vernuil |
| Density(g/cm3) | 5.175 |
| Melting Point(℃) | 2080 |
| Hardness (Mho) | 6 |
| Thermal Expansion | 10.4 (x10-6/ ℃) |
| Dielectric Constant | ~ 300 |
| Loss Tangent at 10 GHz | ~5x10-4 @ 300K , ~3 x10-4 @77K |
| Color and Appearance | Transparent (sometimes slightly brown based on annealing condition).No twins |
| Chemical Stability | Insoluble in water |
Advantage:
1.High temperature superconducting

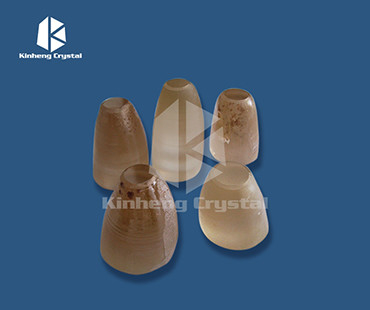

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
