Product Details:
|
| Anti-Temperature: | 70°C | Optic Window: | Quartz Window |
|---|---|---|---|
| Material: | NaI(Tl) Scintillator Crystal | Shape: | Cylinder |
| Housing: | Stainless Steel Housing | Dimension: | 3x8 Inch Or Customized |
Radiation-based level measurement NaI(Tl) scintillator crystal
In radiometric, i.e. radiation-based, level measurement, a slightly radioactive isotope emits focused gamma rays.
The sensor, which is mounted on the opposite side of the vessel, receives this radiation. Since gamma rays are attenuated when penetrating matter, the sensor can calculate level, point level, density or mass flow from the intensity of the incoming radiation.
The sensor material usually is NaI(Tl) scintillator crystal.
Properties:
| Density(g/cm3) | 3.67 |
| Melting Point (K) | 924 |
| Thermal expansion coefficient (K-1) | 47.4 x 10-6 |
| Cleavage Plane | (100) |
| Hardness (Mho) | 2 |
| Hygroscopic | Yes |
| Wavelength of Emission Maximum (nm) | 415 |
| Refractive Index at Emission Maximum | 1.85 |
| Primary Decay Time(ns) | 250 |
| Light Yield (photons/keV) | 38 |
Advantage:
1.Good performance for shocking/virbration
2.Anti-high temperature
3.Forged crystal with good mechanic strength
4.Diameter 15mm -Dia4" available
Application:
MWD
Oil/Welllogging
Gamma probe

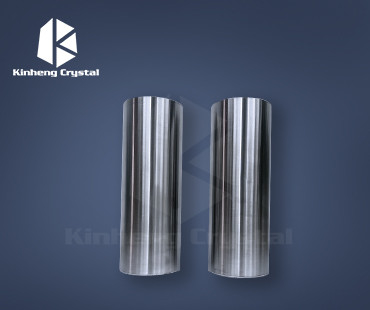

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
