LuAG:Ce scintillation crystal

LuAG:Ce scintillation crystal
LuAG:Ce scintillation crystal

Large Image :  LuAG:Ce scintillation crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Model Number: Dia80x100
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

LuAG:Ce scintillation crystal

Max Dimension: Dia80x100mm Crystal System: Cubic
Density(g/cm3): 6.73 Hardness (Mho): 8.5
Light Yield (photons/keV): 25 Energy Resolution(FWHM): 6.5%
Decay Time(ns): 70 Center Wave Length(nm): 530

LuAG:Ce scintillation crystal


Cerium doped Lutetium Aluminium Crystal (Ce:LuAG) is a well-established scintillator and has many attractive properties, such as fast decay (70ns), high light yield, and emission peaks at 530nm that are well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability. The Ce:LuAG Crystal is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.



Crystal System Cubic
Density(g/cm3) 6.73
Hardness (Mho) 8.5
Light Yield (photons/keV) 25
Energy Resolution(FWHM) 6.5%
Decay Time(ns) 70
Center Wavelength 530




Stable scintillating characteristics

Fast decay time



X ray imaging

Imaging screen

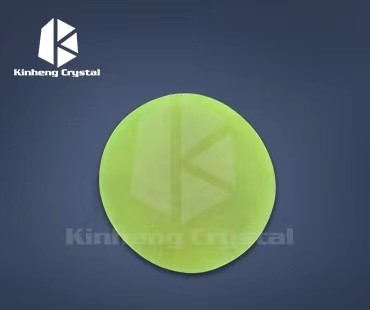

Product shots:


LuAG:Ce scintillation crystal 0
