Product Details:
|
| Max Dimension: | Dia80x100mm | Crystal System: | Cubic |
|---|---|---|---|
| Density(g/cm3): | 6.73 | Hardness (Mho): | 8.5 |
| Light Yield (photons/keV): | 25 | Energy Resolution(FWHM): | 6.5% |
| Decay Time(ns): | 70 | Center Wave Length(nm): | 530 |
| High Light: | Lutetium Aluminum Garnet Crystal,Lutetium Aluminum Gem Jewellery,Cubic Lutetium Aluminum Garnet |
||
Lutetium aluminum garnet Gem Jewellery LuAG:Ce crystal
Lutetium aluminum garnet (LuAG:Ce), activated by cerium is a well established scintillating material with the primary advantages of high density (6.73g/cm3) and fast decay (70ns), which is suitable for thin imaging screens. Besides, Ce:LuAG has a high photon yield and a central emission at 510nm that well matched with photodiode and avalanche diode readout. With very good chemical, mechanical and temperature resistance, Ce:LuAG is also an ideal choice for medical scanning systems and high-energy particle detectors.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 6.73 |
| Hardness (Mho) | 8.5 |
| Light Yield (photons/keV) | 25 |
| Energy Resolution(FWHM) | 6.5% |
| Decay Time(ns) | 70 |
| Center Wavelength | 530 |
Advantage:
Non-hygroscopic
Stable scintillating characteristics
Fast decay time
Application:
X ray imaging
Imaging screen

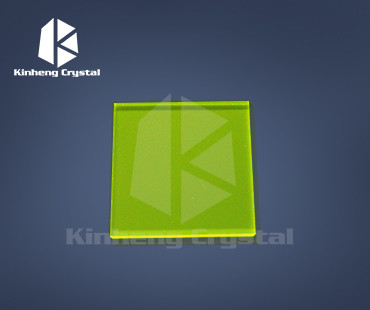

Product shots:
