Product Details:
|
| Material: | Scitnillator Crystal | Atomic Number (Effective): | 65 |
|---|---|---|---|
| Melting Point(℃): | 2070 | Crystal Structure: | Mono |
| Thermal Expansion Coeff.: | 7.0 X 10‾⁶ | Hardness (Mho): | 5.8 |
| Radiation Length(cm): | 1.1 | Application: | PET ，ToF-PET |
| High Light: | LYSO Ce Scintillator Crystal,Nuclear Medicine Scintillator Crystal,Nuclear Medicine LYSO Ce Crystal |
||
LYSO:Ce Scintillator Crystal for nuclear medicine and nuclear physics
The LYSO crystal is an ideal generation sintillator crystal. LYSO stands for Cerium doped Lutetium Yttrium Orthosilicate. This crystal has the advantages of high light output, high density, fast decay time, good energy resolution and low cost. These properties mean that LYSO is an ideal candidate for a range of ray detection applications in nuclear physics and nuclear medicine, which require higher though improved timing resolution and superior energy revolution. Kinheng can produce LYSO in high volume and can supply finished pixel, assembled customer specified array, or module configurations.
Properties:
| Crystal System | Monoclinic |
| Density(g/cm3) | 7.15 |
| Hardness (Mho) | 5.8 |
| Refractive Index | 1.82 |
| Light Output (Comparing NaI(Tl)) | 65~75% |
| Decay Time (ns) | ≤38-42 |
| Peak Wavelength (nm) | 420 |
| Anti-radiation (rad) | 1×108 |
Advantage:
Good light output
High density
Fast decay times, good timing resolution
Energy resolution
Non-hygroscopic
Enhanced LYSO can achieve fast decay time for ToF-PET
Application:
Nuclear medical imaging (Especially in PET, ToF-PET)
High energy physics
Geophysical exploration

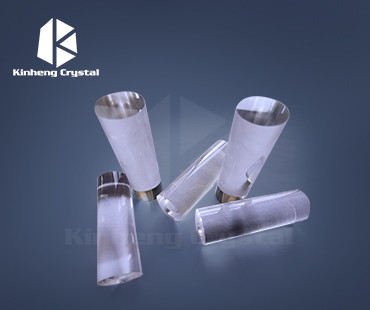

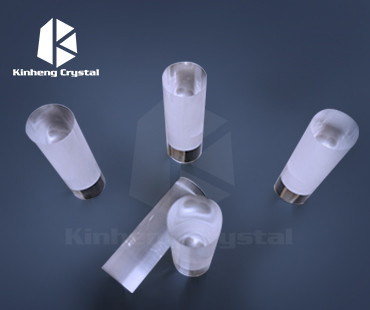

Product shots:
