Product Details:
|
| Material: | Scitnillator Crystal | Atomic Number (Effective): | 65 |
|---|---|---|---|
| Melting Point(℃): | 2070 | Crystal Structure: | Mono |
| Thermal Expansion Coeff.: | 7.0 X 10‾⁶ | Hardness (Mho): | 5.8 |
| Radiation Length(cm): | 1.1 | Application: | PET ，ToF-PET |
| High Light: | LYSO Scintillation Crystal,PET Scintillator Crystal,Lutetium Yttrium Silicate Scintillation Crystal |
||
Cerium doped Lutetium Yttrium Orthosilicate LYSO Scintillator Crystal PET
LYSO(Ce) Scintillation Crystal emits 420 nm light and couples well with PMT under the stimulation of high energy. It also has the advantage of high light yield, short decay time, high density, non-deliquescence, and all-around stable physical and chemical properties. Owing to its excellent time and energy resolution, LYSO(Ce) Scintillation Crystal is widely used in nuclear medicine and nuclear physics.
A non-hydroscopic scintillator that is both bright and fast. Finds application where fast timing is needed such as PET and TOF PET.
Properties:
| Crystal System | Monoclinic |
| Density(g/cm3) | 7.15 |
| Hardness (Mho) | 5.8 |
| Refractive Index | 1.82 |
| Light Output (Comparing NaI(Tl)) | 65~75% |
| Decay Time (ns) | ≤38-42 |
| Peak Wavelength (nm) | 420 |
| Anti-radiation (rad) | 1×108 |
Advantage:
Good light output
High density
Fast decay times, good timing resolution
Energy resolution
Non-hygroscopic
Enhanced LYSO can achieve fast decay time for ToF-PET
Application:
Nuclear medical imaging (Especially in PET, ToF-PET)
High energy physics
Geophysical exploration

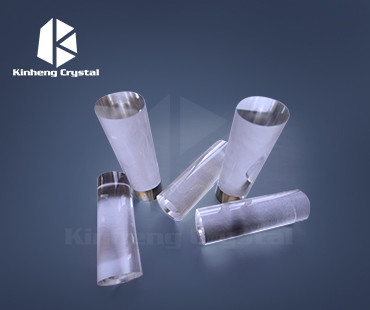

Product shots:
