Product Details:
|
| Material: | GAGG Scintillator | Product Shape Available: | Cylinder， Cubic，Rectangular，Flakes |
|---|---|---|---|
| Application: | PET PEM SEM SPECT CT | SiPM: | Applicable |
| Reflector: | BaSO4/ESR | Chemical Formula: | Ce:Gd3Al2Ga3O12 |
| Density (g/cm3): | 6.6 | Melting Point (℃): | 1850 |
| Hardness (Mho): | 8 | ||
| High Light: | X-Ray Scintillation Crystal,Gamma Ray Detection Scintillation Crystal,Rectangular GAGG Scintillator |
||
X-ray and γ-ray detection GAGG Scintillation Crystal
Radiation imaging systems are widely used in biomedical and radiation environmental monitoring, which stimulates the demand of advanced the design of high-resolution detectors and radiology imaging systems. The Gadolinium Aluminum Gallium Garnet (Ce:GAGG) is a flavescent crystal with high light output of 50000 ph/MeV, short decay time of ∼50 ns and high density of 6.6 g/cm³ . The Ce:GAGG crystals appeared to be the most attractive material for its light output, decay time, energy resolution, density and absence of intrinsic radioactivity, which is promising for applying in the field of scanning electron microscopy (SEM), X-ray and γ-ray detection, medical imaging techniques, nuclear and high energy physics.
Properties:
| Type | GAGG-HL | GAGG Balance | GAGG-FD |
| Crystal System | Cubic | Cubic | Cubic |
| Density(g/cm3) | 6.6 | 6.6 | 6.6 |
| Light Yield (photons/Kev) | 60 | 50 | 30 |
| Decay Time(ns) | ≤150 | ≤90 | ≤48 |
| Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SEM,SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

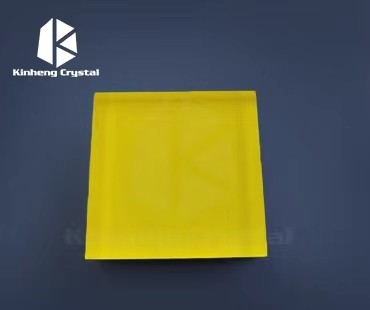

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
