GAGG Scintillator Crystal PET PEM SEM SPECT CT

GAGG Scintillator Crystal PET PEM SEM SPECT CT

The cerium doped multicomponent Gadolinium Aluminum Gallium Garnet crystals, referred as Ce:GAGG with the chemical formula of Ce:Gd₃Al₂Ga₃O₁₂, belong to the most important discoveries that offer excellent scintillation properties as well as having entered the scintillator market in the current decade. The effective atomic number is 54.4, and the emission spectrum peak wavelength is 520 nm. Apart from the high light yield, good energy resolution, high effective atomic number, fast scintillation response, chemical stability also ruggedness and capability of large crystal growth are very important properties for Ce:GAGG crystals as well. The linearity of response on the gamma quanta shows Ce:GAGG crystals is a promising candidate for medical imaging techniques, such as X-ray radiography, X-ray computed tomography (CT), positron emission tomography (PET). Single crystal scintillators are frequently used for scanning electron microscopy (SEM).

Properties:

Advantage:

1. Good stopping power

2. High brightness

3. Low afterglow

4. Fast decay time

Application:

Gamma camera

PET, PEM, SEM,SPECT, CT

X-ray & Gamma ray detection

High energy container inspection

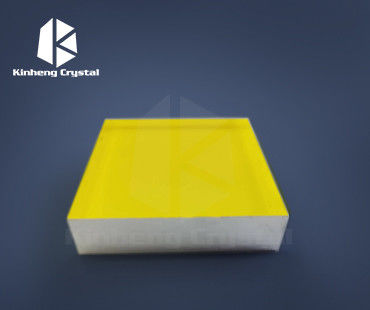

Product shots:

FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.

2.Q: Where is your main market?

A: Europe, America, Asia.
