Product Details:
|
| Material: | GAGG Scintillator | Type: | HL/Balance/FD |
|---|---|---|---|
| Decay Time: | 48ns/90ns/150ns | Ingot Dimension: | Dia60x200mm And Dia50x150mm |
| Hygroscopic: | None | Product Shape Available: | Cylinder， Cubic，Rectangular，Flakes |
| Application: | Gamma Spectroscopy And Medical Imaging | Growth Technique: | Czochralski Technique |
| High Light: | Scintillator Crystal Radiation Detector,Cubic GAGG Scintillator Crystal,Gamma Spectroscopy Scintillation Crystal Material |
||
Cerium Doped Gadolinium Aluminium Gallium Garnet Scintillator Crystal
Kinheng is a ISO9001:2015 certified enterprise, who provideing high cost-effective GAGG products for customers.GAGG is an ideal scintillation crystal and with high light yield, high energy resolution.Kinheng provides customized size,shape,surface treatment,also can provide customized array with broad selection of reflectors including BaSO4,ESR,TiO2 and Tyflon.The experiment data indicate that BaSO4 is the best reflector for GAGG, of which the reflecting effection is 15% higher than TiO2.
Properties:
| Type | GAGG-HL | GAGG Balance | GAGG-FD |
| Crystal System | Cubic | Cubic | Cubic |
| Density(g/cm3) | 6.6 | 6.6 | 6.6 |
| Light Yield (photons/Kev) | 60 | 50 | 30 |
| Decay Time(ns) | ≤150 | ≤90 | ≤48 |
| Center Wavelength | 530 | 530 | 530 |
Advantage:
1. Good stopping power
2. High brightness
3. Low afterglow
4. Fast decay time
Application:
Gamma camera
PET, PEM, SPECT, CT
X-ray & Gamma ray detection
High energy container inspection

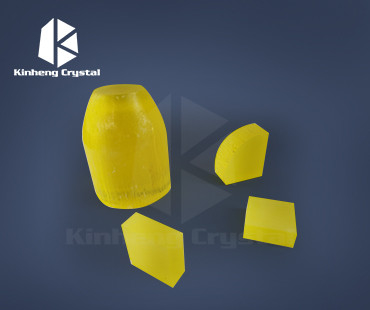

Product shots:
FAQ:
1. Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
