Product Details:
|
| Material: | YAG（Ce） | Light Yield (photons/keV): | 15 |
|---|---|---|---|
| Decay Time(ns): | 80 | Wavelength(nm)nm): | 530 |
| Atomic Number (Effective): | 74 | Thermal Expansion Coeff.: | 8.5 X 10‾⁶ |
| Wavelength Range(nm): | 500-700 | Crystal Structure: | Cubic |
| High Light: | Beta YAG Ce Scintillator,X-Ray Counting YAG Ce Scintillator,80ns Scintillator Crystal |
||
Beta and X-ray counting YAG(Ce) scintillator crystal
YAG(Ce) (Y3Al5O12:Ce) is a fast and rugged scintillation material with great mechanical properties and chemical resistance.
YAG(Ce) | Scintillation Crystal is a scintillation crystal commonly used as a phosphor in cathode ray tubes and white light-emitting diodes. It has high luminous efficacy, and its peak emission (550 nm) allows for effective coupling with silicon photodiode detector devices. The crystal also has excellent mechanical properties and is chemically resistant, which makes it suitable for use in extreme environments, and makes possible the production of thin YAG(Ce) screens.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 4.5 |
| Hardness (Mho) | 8 |
| Melt Point(°C) | 1970 |
| Light Yield (photons/keV) | 15 |
| Decay Time(ns) | 80 |
| Wavelength(nm) | 530 |
Advantage:
Fast decay time
Well matched with CCD detectors
Stable scintillating characteristics up to c.100 rad
Virtually no afterglow emissions
Non-hygroscopic
Application:
Light/ Alfa particle detection
Gamma ray detection
Electronic detection imaging (SEM)
High resolution microscopic imaging

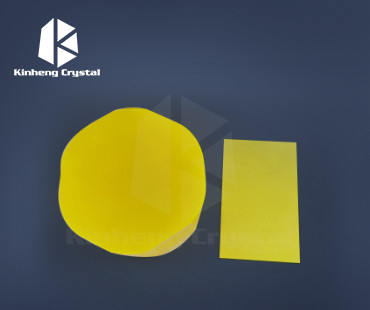

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
