Product Details:
|
| Full Name: | Yttrium Aluminum Garnet Activated By Cerium | Light Yield (photons/keV): | 15 |
|---|---|---|---|
| Decay Time(ns): | 80 | Wavelength(nm)nm): | 530 |
| Atomic Number (Effective): | 74 | Thermal Expansion Coeff.: | 8.5 X 10‾⁶ |
| Wavelength Range(nm): | 500-700 | Crystal Structure: | Cubic |
| High Light: | Electron Microscopy YAG Ce Scintillator,YAG Ce Fast Scintillator Crystal,YAG Crystal 530nm |
||
Electron microscopy fast scintillator YAG(Ce)
Yttrium aluminum garnet activated by cerium is a fast scintillator with excellent mechanical and chemical resistance. YAG:Ce scintillation detectors are preferred for electron microscopy, beta and X-ray counting, as well as for electron and X-ray imaging screens.
Properties:
| Crystal System | Cubic |
| Density(g/cm3) | 4.5 |
| Hardness (Mho) | 8 |
| Melt Point(°C) | 1970 |
| Light Yield (photons/keV) | 15 |
| Decay Time(ns) | 80 |
| Wavelength(nm) | 530 |
Advantage:
Fast decay time
Well matched with CCD detectors
Stable scintillating characteristics up to c.100 rad
Virtually no afterglow emissions
Non-hygroscopic
Application:
Light/ Alfa particle detection
Gamma ray detection
Electronic detection imaging (SEM)
High resolution microscopic imaging

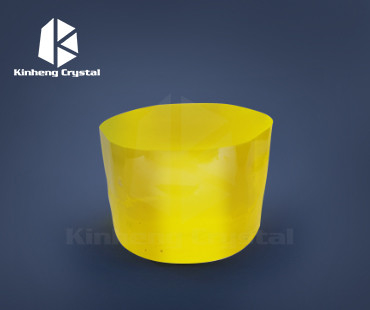

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
