High Energy Photon Spectroscopy Pure CsI Scintillator Crystal

High Energy Photon Spectroscopy Pure CsI Scintillator Crystal
High Energy Photon Spectroscopy Pure CsI Scintillator Crystal

Large Image :  High Energy Photon Spectroscopy Pure CsI Scintillator Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Model Number: 6x6x6mm or 10x10x10mm
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

High Energy Photon Spectroscopy Pure CsI Scintillator Crystal

Description
Coating: TiO2 Color: Transparent
Product Name: CsI Pure Scintillator Crystal Atomic Number (Effective): 54
Ingot: 90x300mm Crystal Growth Method: Bridgman And Czochralski Available
Shape: Cylinder, Cubic, Retangular,Flakes Available Decay Time: 16 Ns
High Light:

Pure CsI Scintillator Crystal

,

Photon Spectroscopy CsI Crystal

,

High Energy CsI Scintillator Detector



High-energy photon spectroscopy pure CsI Scintillator Crystal



Undoped CsI has higher radiation stability than when doped with thallium or sodium, and its properties can be largely restored after а certain time. No substantial radiation damage was observed in CsI up to doses of 105 rad.
This material finds its applications in high-energy photon spectroscopy. Undoped CsI can be used in combination with standard glass PMT, though better results are obtained with quartz windows.





Properties:



Density(g/cm3) 4.51
Melting Point (K) 894
Thermal Expansion Coefficient (K-1) 54 x 10-6
Cleavage Plane None
Hardness (Mho) 2
Hygroscopic Slightly
Wavelength of Emission Maximum (nm) 550
Lower Wavelength Cutoff(nm) 320
Refractive Index at Emission Maximum 1.79
Primary Decay Time (ns) 1000
Afterglow (after 30ms) [%] 0.5 – 0.8
Light Yield (photons/keV) 52- 56
Photoelectron Yield [% of NaI(Tl)] (for γ-rays) 45



Advantage:

Well matched with PD

Good stopping power

Good energy resolution/ low afterglow



Application:

Gamma detector

X-ray imaging

Security inspection

High energy physics

SPECT

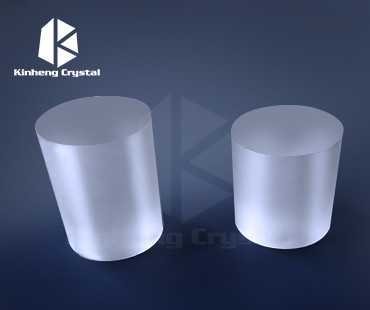

Product shots:





High Energy Photon Spectroscopy Pure CsI Scintillator Crystal 0
