Undoped Cesium Iodide CsI Pure Scintillation Crystal

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Undoped Cesium Iodide CsI Pure Scintillation Crystal

Undoped Cesium Iodide CsI Pure Scintillation Crystal
Undoped Cesium Iodide CsI Pure Scintillation Crystal

Large Image :  Undoped Cesium Iodide CsI Pure Scintillation Crystal

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Model Number: 6x6x6mm or 10x10x10mm
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

Undoped Cesium Iodide CsI Pure Scintillation Crystal

Description
Coating: TiO2 Color: Transparent
Product Name: CsI Pure Scintillator Crystal Atomic Number (Effective): 54
Ingot: 90x300mm Crystal Growth Method: Bridgman And Czochralski Available
Shape: Cylinder, Cubic, Retangular,Flakes Available Decay Time: 16 Ns
High Light:

Undoped Cesium Iodide CsI Scintillator

,

Pure CsI Crystal

,

Transparent CsI Scintillation Crystal



Undoped Cesium Iodide CsI(Pure) Scintillation Crystal



Undoped cesium iodide or CsI(pure) has high density, sufficiently small radiation length (1,86 sm) and much lower hygroscopicity than CsI(Tl). CsI(pure) has fluorescence spectrum with maximum at 315 nm with the short decay time (about 16 ns) and long-wave component which allows effectively using this scintillation material for medium- and high-energy physics experiments. Therefore, CsI(pure) can be used when high counting rate is required. CsI(pure) differs from CsI(Tl) and CsI(Na) scintillators by a much faster response and lower light yield.



Properties:



Density(g/cm3) 4.51
Melting Point (K) 894
Thermal Expansion Coefficient (K-1) 54 x 10-6
Cleavage Plane None
Hardness (Mho) 2
Hygroscopic Slightly
Wavelength of Emission Maximum (nm) 550
Lower Wavelength Cutoff(nm) 320
Refractive Index at Emission Maximum 1.79
Primary Decay Time (ns) 1000
Afterglow (after 30ms) [%] 0.5 – 0.8
Light Yield (photons/keV) 52- 56
Photoelectron Yield [% of NaI(Tl)] (for γ-rays) 45



Advantage:

Well matched with PD

Good stopping power

Good energy resolution/ low afterglow



Application:

Gamma detector

X-ray imaging

Security inspection

High energy physics

SPECT

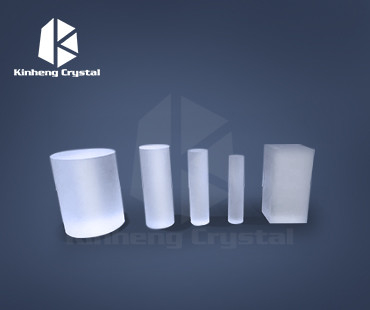

Product shots:





Undoped Cesium Iodide CsI Pure Scintillation Crystal 0

Undoped Cesium Iodide CsI Pure Scintillation Crystal 1



FAQ:

1.Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2.Q:Where is your main market?

A:Europe, America, Asia.
