CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength

Certification
China Kinheng Crystal Material (Shanghai) Co., Ltd. certification
I'm Online Chat Now

CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength

CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength
CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength

Large Image :  CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength

Product Details:
Place of Origin: China
Brand Name: Kinheng
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year

CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength

Description
HS Code: 8541609000 Product Name: CWO Scintillator
Chemical Formula: CdWO4 Density(g/cm3): 7.9
Ingot: Available Wavelength: 470nm
Application: CT Diagnosis Growth Method: Bridgman
High Light:

CT Diagnosis Scintillation Crystal

,

470 Nm Wavelength Scintillator Crystal

,

CdWO4 Scintillation Crystal Material

CT diagnosis 470 nm wavelength CWO Scintillator Crystal



Scintillation single crystal is an optical functional material widely used in high-energy ray detection and imaging technology. Cadmium tungstate (CWO) scintillation single crystal material can be widely used in luggage scanners, container inspection equipment, CT diagnosis and treatment equipment and other high-end equipment manufacturing. The material has the characteristics of high density, non-deliquescence and stable chemical properties. Under the excitation of high-energy rays, it has a fluorescence output of 470 nm wavelength. Its relative light yield is more than 2 times that of BGO single crystal, and its luminous afterglow is higher than that of CsI(Tl) The single crystal is 2 orders of magnitude lower, the energy resolution is better than 13%, and the γ-ray irradiation hardness reaches the order of 107rad.



Properties:



Density(g/cm3) 7.9
Decay Time(ns) 14000
Emission Peak(nm) 470
Light Yield (photons/keV) 12
Melting Point(°C) 1272
Hardness (Mho) 4-4.5
Refractive Index 2.3
Hygroscopic None
Cleavage Plane (101)



Advantage:

High density, high Z

Low afterglow

High detection efficiency



Application:

Nuclear medical X-ray CT scanner

Container inspection industry

Vehicle scanning

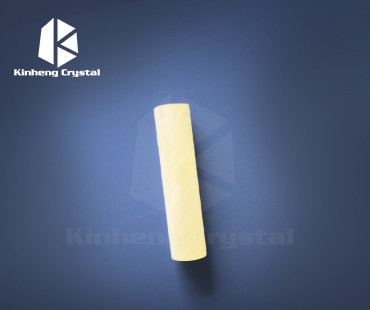

Product shots



CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength 0

CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength 1



CT Diagnosis CWO Scintillator Crystal 470 Nm Wavelength 2



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2. Q: Where is your main market?

A: Europe, America, Asia.
