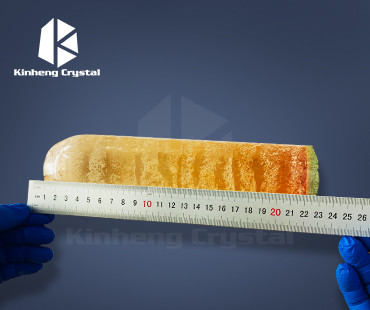

Single CWO Scintillator Crystal Ingot Dia 70 X 200mm

Description
HS Code: 8541609000 Product Name: CWO Scintillator
Quality: Excellent Chemical Formula: CdWO4
Density(g/cm3): 7.9 Ingot: Available
Hygroscopic: None Growth Method: Bridgman
High Light:

CWO Crystal ​Ingot

,

​Scintillator Crystal ​Ingot

,

Scintillator Crystal Dia 70 X 200mm

CWO Scintillator Crystal Ingot Dia70x200mm



Cadmium Tungstate (CdWO4, CWO) single crystal is an important scintillation material applied in the radiation detection technology, especially for security checking, industrial CT and medical imaging. Large-size CWO single crystals with high quality are grown successfully by Bridgman growth method in our company for many years, we can offer CWO Ingots in large quantity.



Properties:



Density(g/cm3) 7.9
Decay Time(ns) 14000
Emission Peak(nm) 470
Light Yield (photons/keV) 12
Melting Point(°C) 1272
Hardness (Mho) 4-4.5
Refractive Index 2.3
Hygroscopic None
Cleavage Plane (101)



Advantage:

High density, high Z

Low afterglow

High detection efficiency



Application:

Nuclear medical X-ray CT scanner

Container inspection industry

Vehicle scanning



Product shots



Single CWO Scintillator Crystal Ingot Dia 70 X 200mm 0

Single CWO Scintillator Crystal Ingot Dia 70 X 200mm 1



Single CWO Scintillator Crystal Ingot Dia 70 X 200mm 2



FAQ:

1. Q: Are you a factory manufacturer?

A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.



2. Q: Where is your main market?

A: Europe, America, Asia.
