Product Details:
|
| Hygroscopic: | Slightly | Wavelength Of Emission Maximum (nm): | 550 |
|---|---|---|---|
| Lower Wavelength Cutoff(nm): | 320 | Refractive Index At Emission Maximum: | 1.79 |
| Light Yield (photons/keV): | 52- 56 | Puse CsI: | Available |
| CsI(Tl): | Available | Name: | Caesium Iodide |
| High Light: | CsI Scintillation Crystal,protons Scintillation Crystal,alpha particles caesium iodide |
||
Detection of protons and alpha particles Caesium iodide (CsI) scintillation crystal
Caesium iodide (CsI) in crystalline form is used as the scintillator for the detection of protons and alpha particles. Pure CsI is a fast and dense scintillating material with relatively low light yield that increases significantly with cooling. The drawbacks of CsI are a high temperature gradient and a slight hygroscopicity.
Thallium-doped Caesium Iodide has an effective atomic number of 54 and a density of 4.51 g/cm3. CsI(TI) is also hygroscopic and should not be subjected to high humidity or water. CsI(TI) has different decay times for different particles (680ns and 3340ns) and can be used to determine between different kinds of radiation. The emission spectrum is peaked at 540-560 nm.
Properties:
| Density(g/cm3) | 4.51 |
| Melting Point (K) | 894 |
| Thermal Expansion Coefficient (K-1) | 54 x 10-6 |
| Cleavage Plane | None |
| Hardness (Mho) | 2 |
| Hygroscopic | Slightly |
| Wavelength of Emission Maximum (nm) | 550 |
| Lower Wavelength Cutoff(nm) | 320 |
| Refractive Index at Emission Maximum | 1.79 |
| Primary Decay Time (ns) | 1000 |
| Afterglow (after 30ms) [%] | 0.5 – 0.8 |
| Light Yield (photons/keV) | 52- 56 |
| Photoelectron Yield [% of NaI(Tl)] (for γ-rays) |
45 |
Advantage:
Well matched with PD
Good stopping power
Good energy resolution/ low afterglow
Application:
Gamma detector
X-ray imaging
Security inspection
High energy physics
SPECT

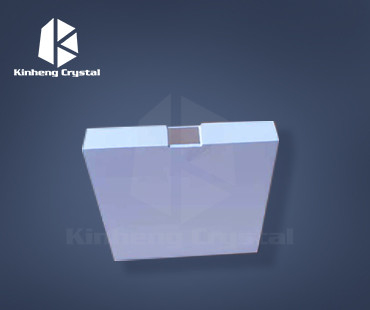

Product shots:
