Product Details:
|
| Name: | Cadmium Tungstate CdWO4 | Application: | High Energy Container Checking, Vehicle Scanning,x Ray Security Inspection |
|---|---|---|---|
| Size: | Customized Available | Array: | 2-dimensional And Linear Array |
| Maximum Dia Of Ingot: | 70mm | Ingot: | Available |
| Crystal Growth: | Yes | Growth Methodd: | Bridgman |
| High Light: | CdWO4 Scintillation Crystal,CWO Scintillation Crystal,cadmium tungstate scintillator |
||
Cadmium Tungstate CdWO4 CWO Scintillation Crystal
Cadmium Tungstate CdWO4 (CWO) crystal less than seven centimeters in linear dimensions are available in a wide variety of processing and geometries including 2-dimensional and linear arrays.
All grown ingots are tested for optical and scintillation characteristics. System of Quality Control provides manufacturing of qualitative optical elements with parameters within the customer’s specifications.
System of Quality Control is used on all stages of manufacturing process and includes incoming control of initial oxides and inspection of used materials, scintillation and optical testing of crystal material and finish control of optical elements (testing, dimensions, inclusions).
Properties:
| Density(g/cm3) | 7.9 |
| Decay Time(ns) | 14000 |
| Emission Peak(nm) | 470 |
| Light Yield (photons/keV) | 12 |
| Melting Point(°C) | 1272 |
| Hardness (Mho) | 4-4.5 |
| Refractive Index | 2.3 |
| Hygroscopic | None |
| Cleavage Plane | (101) |
Advantage:
High density, high Z
Low afterglow
High detection efficiency
Application:
Nuclear medical X-ray CT scanner
Container inspection industry
Vehicle scanning

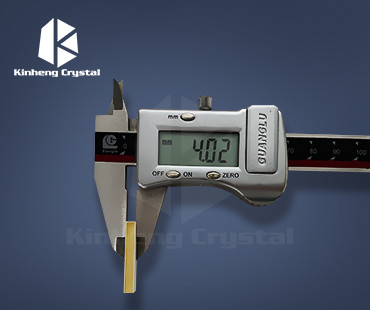

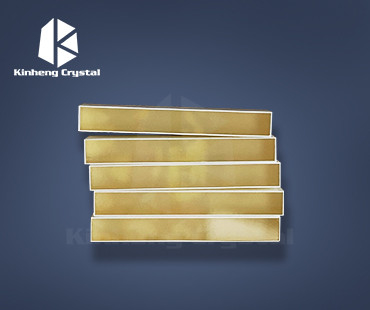

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q: Where is your main market?
A: Europe, America, Asia.
