Product Details:
|
| Encapsulation Housing: | Stainless Steel /Titanium Alloy Housing | Application Temperature: | 150°C, 175°C |
|---|---|---|---|
| Optical Window: | Sapphire | Product Name: | Polycrystalline NaI(Tl) |
| Application: | Well Logging, MWD And Aerospace | Mechanical Strength: | Strong |
| Scintillation Performance: | Equivalent To Single Crystal NaI(Tl) | Ruggedness: | Yes |
| High Light: | Anti shock scintillation crystal,anti thermal scintillation crystal,NaI Crystal Array |
||
Anti shock anti thermal Polycrystalline NaI(Tl) scintillation crystal
Any fractures produced by thermal or mechanical shock in Polycrystalline NaI(Tl) are normally blocked or confined to the small local volumes called grains. Because the cleavage planes of the grains are randomly oriented, it is unlikely that a small fracture would propagate across the grain boundaries. This makes Polycrystalline NaI(Tl) the material of choice where ruggedness is important, such as well logging, MWD and aerospace applications.
In contrast, single crystals can cleave along planes under similar shock conditions. In a detector assembly fabricated from single-crystal material, even a small crack may propagate along the entire crystal, interfering with the light collection and degrading the pulse height resolution.
Properties:
| Density(g/cm3) | 3.67 |
| Melting Point (K) | 924 |
| Thermal expansion coefficient (K-1) | 47.4 x 10-6 |
| Cleavage Plane | (100) |
| Hardness (Mho) | 2 |
| Hygroscopic | Yes |
| Wavelength of Emission Maximum (nm) | 415 |
| Refractive Index at Emission Maximum | 1.85 |
| Primary Decay Time(ns) | 250 |
| Light Yield (photons/keV) | 38 |
| Operation Temperature Range | -50℃ to 175℃ |
| Gradient | 3 degree per minute max |
| Vibration | Random 20g, 5-500Hz 30 minutes duration per axis total |
| Shocking | 500g/1ms-3 shocks per axis,1 axis total |
Advantage:
1.Good performance for shocking/virbration
2.Anti-high temperature
3.Forged crystal with good mechanic strength
4.Diameter 15mm -Dia4" available
Application:
MWD
Oil/Welllogging
Gamma probe
Aerospace

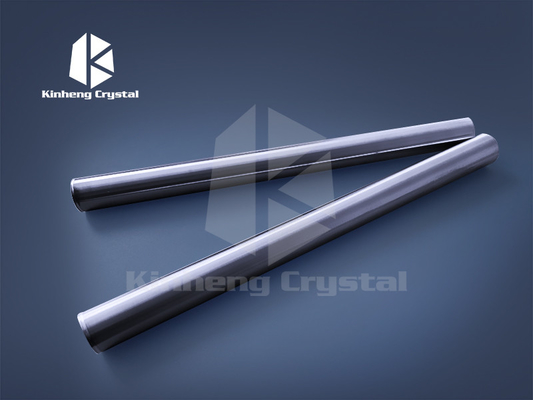

Product shots:
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
